Dashboard Disassembly/Assembly
WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
- Disassemble in the order indicated in the table.

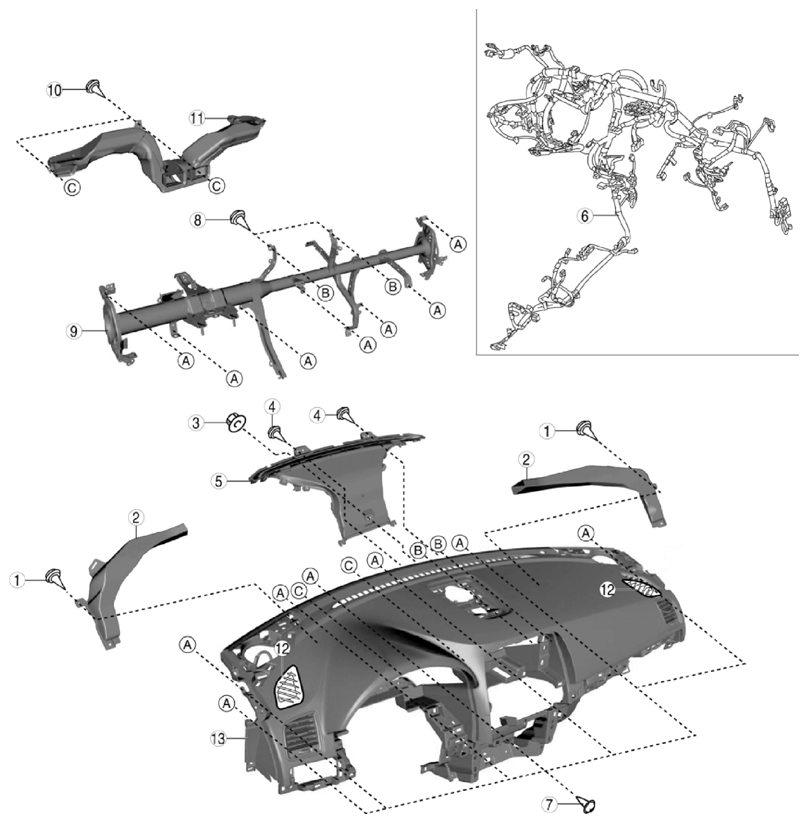

Courtesy of MAZDA MOTORS CORP. COMPONENT DESCRIPTION
| 1 |
Screw |
| 2 |
Side defroster |
| 3 |
Nut |
| 4 |
Screw |
| 5 |
Center defroster |
| 6 |
Wiring harness |
| 7 |
Screw |
| 8 |
Screw |
| 9 |
Dashboard member |
| 10 |
Screw |
| 11 |
Duct |
| 12 |
Demister grille |
| 13 |
Dashboard |
- Assemble in the reverse order of disassembly.
