On-Board Diagnostic Wiring Diagram [Auto Leveling Control Module]
WARNING:
This page is about a different car, the 2017 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

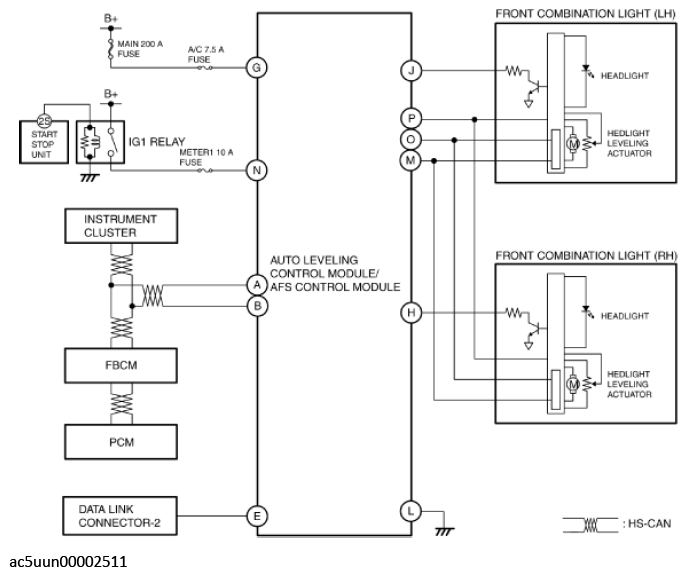

Fig 1: On-Board Diagnostic Wiring Diagram (Auto Leveling Control Module)
Courtesy of MAZDA MOTORS CORP.
