Caliper Installation Note

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Clean the exposed area of the piston.
Press in the piston using a commercially available disc brake expander tool.
CAUTION:
- If the piston is pushed into the caliper while rotating the piston, the caliper internal parts could be damaged. Be careful not to rotate the piston when pushing the piston into the caliper.

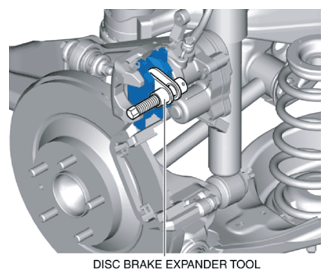

Fig 1: Identifying Disc Brake Expander Tool
Courtesy of MAZDA MOTORS CORP.
Verify that the piston grooves are at the positions shown in the figure.

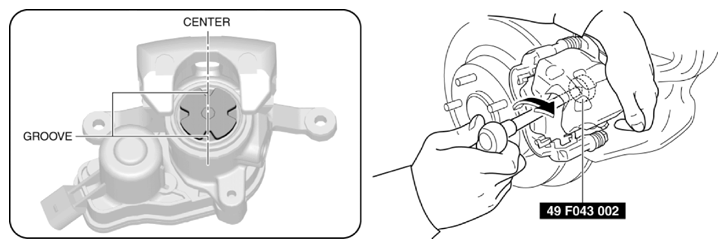

Fig 2: Identifying Piston Groove Center Position
Courtesy of MAZDA MOTORS CORP.
- If the piston grooves are not at the positions shown in the figure, rotate the piston clockwise slowly using the SST and adjust the piston grooves at the positions shown in the figure.
Fig 3: Rotating Piston Clockwise
Courtesy of MAZDA MOTORS CORP.
Install the caliper.

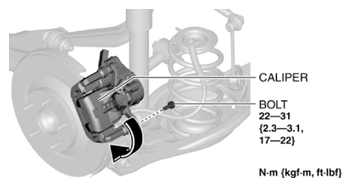

Fig 4: Identifying Caliper Bolts With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Install the bolt.
