DTC B12E8-12; Power Liftgate (PLG) Front Switch Circuit Malfunction: Notes
WARNING: This page is about a different car, the 2017 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
DETECTION CONDITION AND POSSIBLE CAUSES
| Description |
Power liftgate (PLG) front switch circuit malfunction |
| Detection condition |
- Power liftgate (PLG) control module detects a short to power supply in the power liftgate (PLG) front switch circuit.
|
| Fail-safe |
- Stops the power liftgate (PLG) system operation.
|
| Possible cause |
- Power liftgate (PLG) front switch connector or terminal malfunction
- Power liftgate (PLG) front switch malfunction
- Power liftgate (PLG) control module connector or terminal malfunction

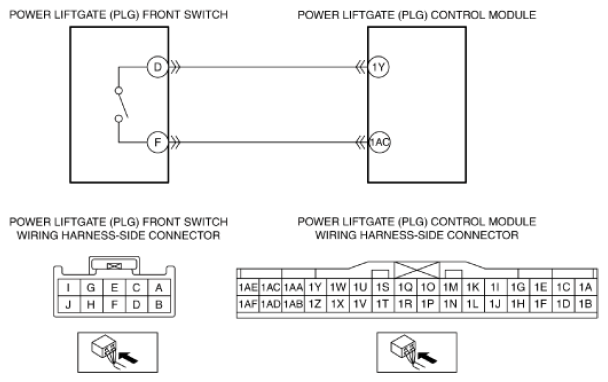

- Short to power supply in wiring harness between power liftgate (PLG) front switch terminal D and power liftgate (PLG) control module terminal 1Y
- Power liftgate (PLG) control module malfunction
|
|
|
