Setting Method By Operation Of Remote Transmitter Button

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

The following setting can be changed by operation of the remote transmitter button.

Function

Initial setting

Setting content

Control unit

2-step unlocking function.⁽¹⁾

OFF/ON

Start stop unit

⁽¹⁾	With 2-step unlocking function.

Change the setting for the 2-step unlocking function referring to the following procedure:

NOTE:

If any of the following conditions is met during procedure, the setting for changing the keyless beeper volume is finished.
- The ignition is switched to ACC or ON (engine off or on).
- The driver's door is closed.
- The liftgate is open.
- The remote transmitter operation is not performed for approx. 10 s.
- The lock button on the remote transmitter is pressed.
- A request switch is pressed.

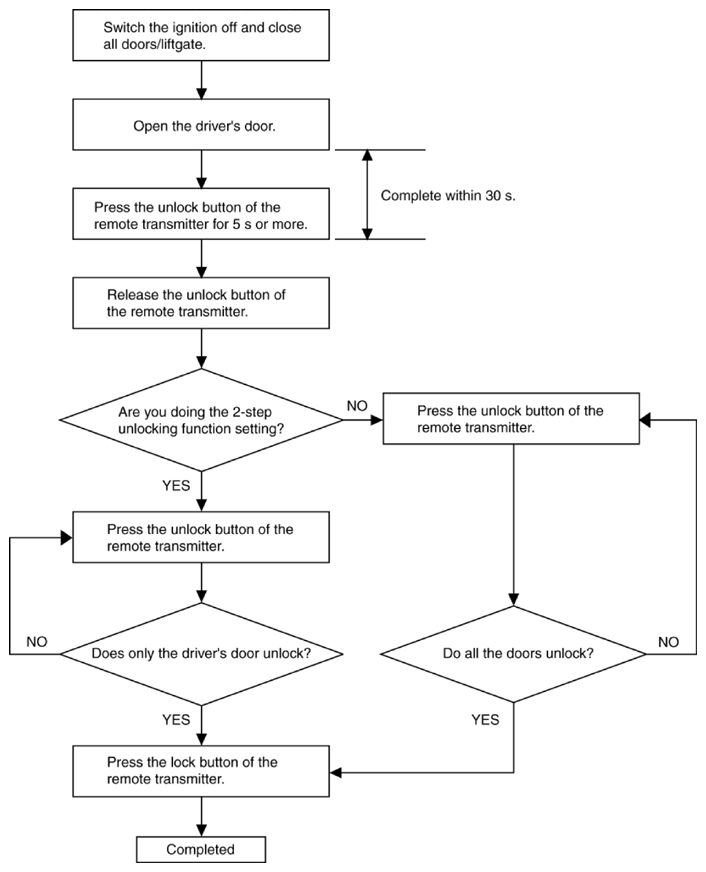

Fig 1: Remote Transmitter Button Setting Method Flowchart

Courtesy of MAZDA MOTORS CORP.
