Front Combination Light Disassembly/Assembly: Notes
WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
- Disassemble in the order shown in the figure.

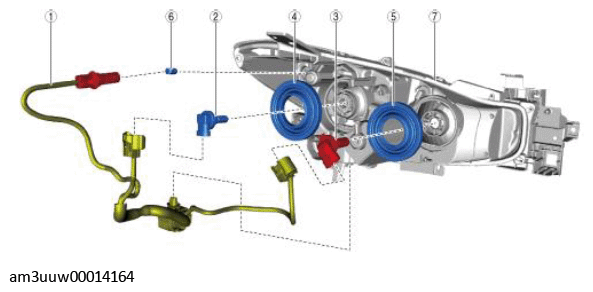

Bulb type
COMPONENT DESCRIPTION1 Short cord
(See Short Cord Removal Note .)2 Headlight LO bulb
(See HEADLIGHT BULB REMOVAL/INSTALLATION .)3 Headlight HI/DRL (daytime running light) bulb
(See HEADLIGHT BULB REMOVAL/INSTALLATION .)4 Cover No. 1
(See Cover Installation Note .)5 Cover No. 2
(See Cover Installation Note .)6 Parking light/Front side marker light bulb

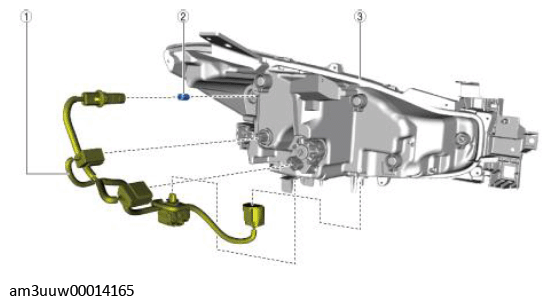

(See PARKING LIGHT BULB REMOVAL/INSTALLATION .)7 Front combination light LED type
COMPONENT DESCRIPTION1 Short cord
(See Short Cord Removal Note .)2 Front side marker light bulb
(See FRONT SIDE MARKER LIGHT BULB REMOVAL/INSTALLATION .)3 Front combination light - Assemble in the reverse order of disassembly.
