Hatchback (5HB): Notes

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Perform the following procedure:
Rear combination light (LH) removal
1. Remove the service hole cover (LH).

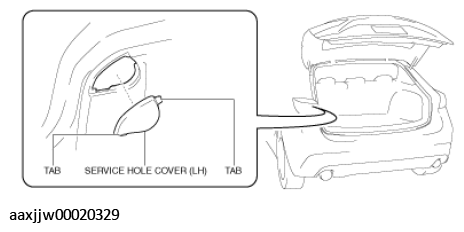

Fig 1: Removing Service Hole Cover Tab
Courtesy of MAZDA MOTORS CORP.

Rear combination light (RH) removal
1. Turn the knob counterclockwise and release the lock.

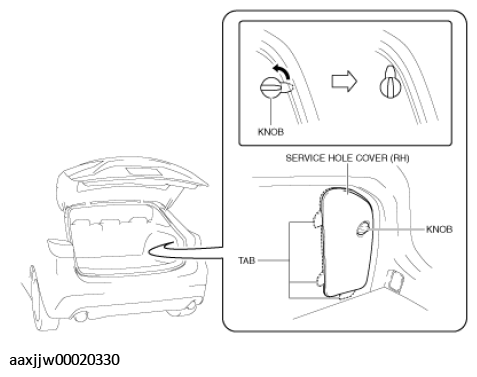

  Fig 2: Turning Service Hole Cover Knob Counterclockwise
  Courtesy of MAZDA MOTORS CORP.
2. Remove the service hole cover (RH).
Disconnect the connectors.

Fig 3: Locating Rear Combination Light Connector
Courtesy of MAZDA MOTORS CORP.
Remove the nuts. (See NUT INSTALLATION NOTE .)
CAUTION:
- When removing the rear combination light from the body, it could interfere with the body and cause scratching or damage to the body. When removing the rear combination light from the body, apply protective tape to the body.
To prevent scratches or damage, affix protective tape to the position shown in the figure.

Fig 4: Affixing Rear Combination Light Protective Tape
Courtesy of MAZDA MOTORS CORP.
CAUTION:
- When removing the rear combination light from the body, the grommet could fall off and become lost. When removing the rear combination light from the body, verify that the grommet remains in the body.

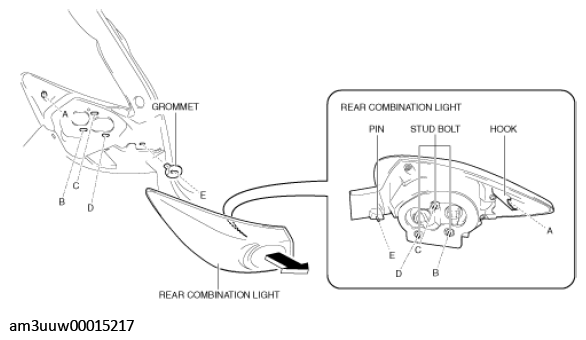

Remove the rear combination light in the direction of the arrow shown in the figure.

Fig 5: Removing Rear Combination Light Grommet
Courtesy of MAZDA MOTORS CORP.
Remove the grommet. (See GROMMET INSTALLATION NOTE .)
Install in the reverse order of removal.
