Exhaust Manifold Bracket Installation Note
WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

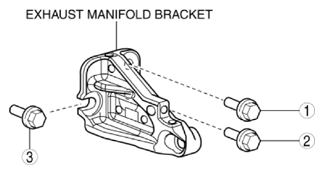

- Temporarily tighten the bolt (3) shown in the figure, insert the exhaust manifold bracket from the side, and temporarily install the exhaust manifold bracket.
- Temporarily tighten the bolt (1) shown in the figure.
- Temporarily tighten the bolt (2) shown in the figure.
- Tighten the bolt in the order shown in the figure.
Tightening torque
- 38-51 N.m {3.9-5.2 kgf.m, 29-37 ft.lbf}
