Engine Mount Installation Note

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • Slots have been adopted for the No. 3 engine mount and No. 4 engine mount bracket installation holes. Tighten the installation bolts and nuts so that they are centered on the slots. Otherwise, engine noise or vibration could increase.
NOTE:
  • Retighten the engine front cover and transaxle stud bolts when the nuts of No. 3 engine mount and No. 4 engine mount bracket are loosened.
  1. Tighten the engine front cover stud bolts.
    Fig 1: Identifying Engine Front Cover Stud Bolts
    G10916126Courtesy of MAZDA MOTORS CORP.

    Tightening torque

    • 7-13 N.m {72-132 kgf.cm, 62-115 in.lbf}
  2. Tighten the transaxle stud bolts.
    Fig 2: Identifying Transaxle Stud Bolts
    G10916127Courtesy of MAZDA MOTORS CORP.

    Tightening torque

    • 15-25 N.m {1.6-2.5 kgf.m, 12-18 ft.lbf}
    CAUTION:
    • When supporting the engine and transaxle, insert rubber of appropriate size (approx. 20 mm {0.79 in} thickness) between the engine lifter and the oil pan, transaxle to prevent the deformation of the oil pan and damage of the transaxle.
  3. Secure the engine and transaxle using a commercially available engine lifter.

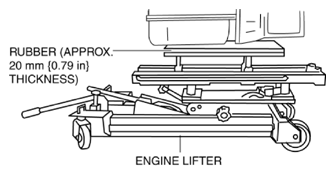

    Fig 3: Supporting Engine And Transaxle
    G10916128Courtesy of MAZDA MOTORS CORP.
  4. Temporarily tighten the No. 3 engine mount installation bolts and nuts using the following procedure:
    1. Temporarily tighten the bolts shown in the figure so that they are centered on the No. 3 engine mount slots.

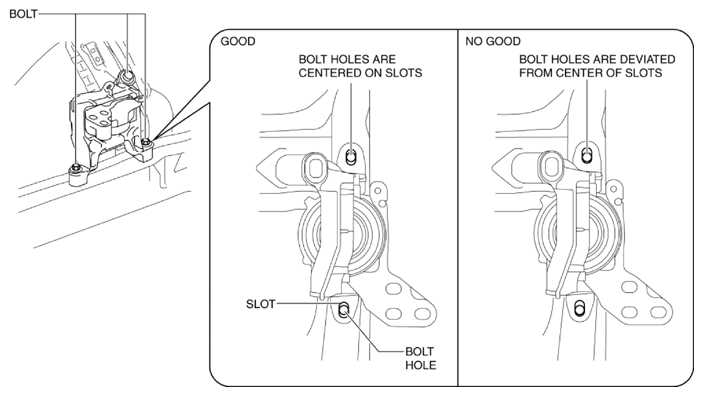

      Fig 4: Identifying Bolts On No. 3 Engine Mount Slots
      G10916129Courtesy of MAZDA MOTORS CORP.
    2. Temporarily tighten the nuts shown in the figure so that the stud bolts of the engine front cover are centered on the No. 3 engine mount slots.

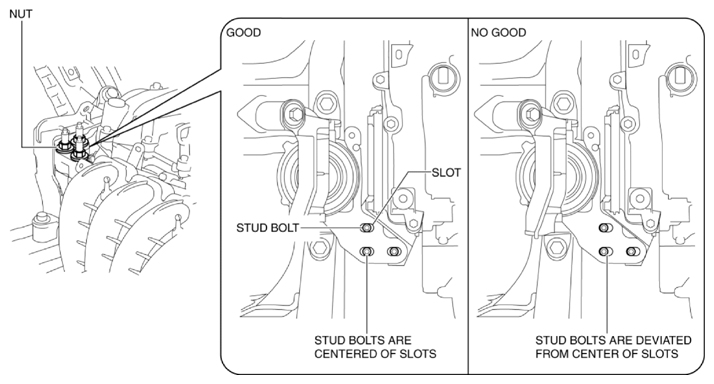

    Fig 5: Identifying Nuts On No. 3 Engine Mount Slots
    G10916130Courtesy of MAZDA MOTORS CORP.
    NOTE:
    • If the stud bolts are deviated from the center of the slots, align the stud bolts with the center of the slots while slightly moving the engine, and temporarily tighten the installation nuts.
  5. Temporarily tighten the No. 4 engine mount bracket installation bolt and nuts using the following procedure:
    1. Temporarily tighten the bolt shown in the figure.

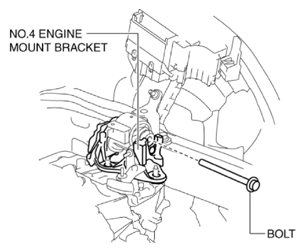

      Fig 6: Tightening No. 4 Engine Mount Bracket Installation Bolt
      G10916131Courtesy of MAZDA MOTORS CORP.
    2. Temporarily tighten the nuts shown in the figure so that they are centered on the No. 4 engine mount bracket slots.

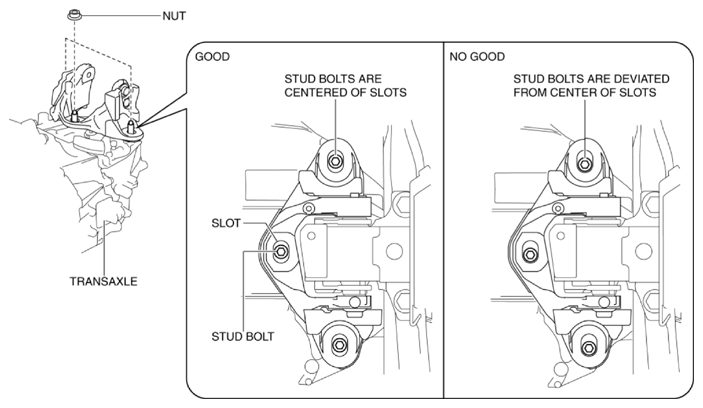

    Fig 7: Identifying Nuts On No. 4 Engine Mount Bracket Slots
    G10916132Courtesy of MAZDA MOTORS CORP.
    NOTE:
    • If the stud bolts are deviated from the center of the slots, align the stud bolts with the center of the slots while slightly moving the transaxle, and temporarily tighten the installation nuts.
  6. Install the No. 1 engine mount rubber and the front crossmember component as a single unit. (See FRONT CROSSMEMBER REMOVAL/INSTALLATION .)
  7. Temporarily tighten the following parts:

    2WD

    • No. 1 engine mount bracket, No. 1 engine mount rubber and bracket plate

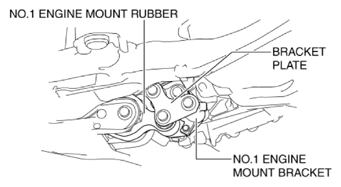

    Fig 8: Identifying No. 1 Engine Mount Rubber And Bracket Plate (2WD)
    G10916133Courtesy of MAZDA MOTORS CORP.

    AWD

    • No. 1 engine mount rubber and bracket plate

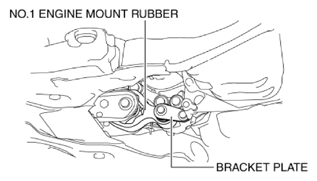

    Fig 9: Identifying No. 1 Engine Mount Rubber And Bracket Plate (AWD)
    G10916134Courtesy of MAZDA MOTORS CORP.
  8. Tighten the No. 1 engine mount bracket and bracket plate installation bolts in the order shown in the figure. (2WD)

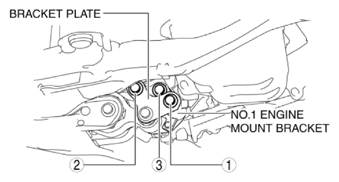

    Fig 10: No. 1 Engine Mount Bracket And Bracket Plate Installation Bolts Tightening Sequence
    G10916135Courtesy of MAZDA MOTORS CORP.

    Tightening torque

    • 84-98 N.m {8.6-9.9 kgf.m, 62-72 ft.lbf}
  9. Tighten the No. 3 engine mount installation bolts and nuts in the order shown in the figure.
    Fig 11: No. 3 Engine Mount Installation Bolts And Nuts Tightening Sequence
    G10916136Courtesy of MAZDA MOTORS CORP.

    Tightening torque

    Installation position Tightening torque
    1 76-95 N.m {7.8-9.6 kgf.m, 57-70 ft.lbf}
    2 82-95 N.m {8.4-9.6 kgf.m, 61-70 ft.lbf}
    3 49-65 N.m {5.0-6.6 kgf.m, 37-47 ft.lbf}
  10. Tighten the No. 4 engine mount bracket installation bolt and nuts in the order shown in the figure.
    Fig 12: No. 4 Engine Mount Bracket Installation Bolt And Nuts Tightening Sequence
    G10916137Courtesy of MAZDA MOTORS CORP.

    Tightening torque

    Installation position Tightening torque
    1, 2, 3 92-116 N.m {9.4-11 kgf.m, 68-85 ft.lbf}
    4 81-99 N.m {8.3-10 kgf.m, 60-73 ft.lbf}
  11. Tighten the No. 1 engine mount rubber installation bolts.

2WD

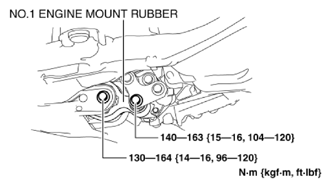

Fig 13: Identifying No. 1 Engine Mount Rubber Installation Bolts (2WD)
G10916138Courtesy of MAZDA MOTORS CORP.

AWD

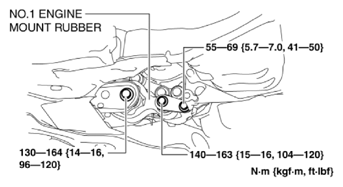

Fig 14: Identifying No. 1 Engine Mount Rubber Installation Bolts (AWD)
G10916139Courtesy of MAZDA MOTORS CORP.
