Engine Front Cover Removal Note

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Remove the insulator shown in the figure.

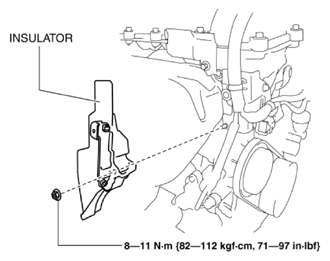

Fig 1: Removing Insulator
Courtesy of MAZDA MOTORS CORP.
Set the ground cable and wiring harness bracket shown in the figure aside.

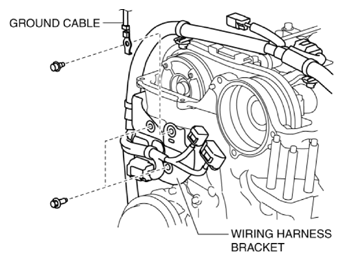

Fig 2: Setting Ground Cable And Wiring Harness Bracket
Courtesy of MAZDA MOTORS CORP.
Remove the engine front cover installation bolts.
Using a screwdriver wrapped in a cloth, peel the sealant away a little at a time, and remove the engine front cover.

CAUTION:

Do not apply excessive force to the screwdriver. Otherwise, the engine front cover could be damaged.
Be careful not to scratch or damage the seal surface. Otherwise, it could cause oil leakage.

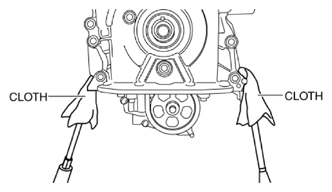

Fig 3: Peeling Sealant Using Screwdriver Wrapped In Cloth (1 Of 2)

Courtesy of MAZDA MOTORS CORP.

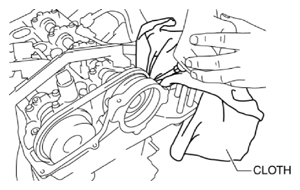

Fig 4: Peeling Sealant Using Screwdriver Wrapped In Cloth (2 Of 2)

Courtesy of MAZDA MOTORS CORP.
