Front Combination Light Disassembly/Assembly: Notes

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disassemble in the order shown in the figure.

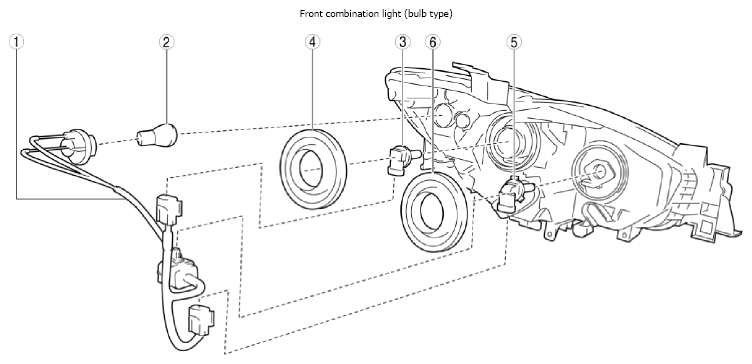

    Fig 1: Front Combination Light Components (Bulb Type)
    G10939157Courtesy of MAZDA MOTORS CORP.
    COMPONENT DESCRIPTION

    1 Short cord
    (See Short Cord Removal Note .)
    2 Parking/Front turn light bulb
    (See PARKING/FRONT TURN LIGHT BULB REMOVAL/INSTALLATION [FRONT COMBINATION LIGHT (BULB TYPE)] .)
    3 Headlight LO bulb
    (See HEADLIGHT BULB REMOVAL/INSTALLATION .)
    4 Cover No. 1
    (See Cover Installation Note .)
    5 Headlight HI bulb (DRL (Daytime running light) bulb)
    (See HEADLIGHT BULB REMOVAL/INSTALLATION .)
    6 Cover No. 2
    (See Cover Installation Note .)

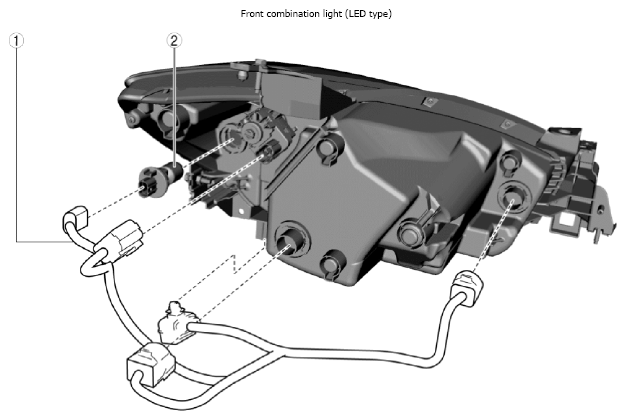

    Fig 2: Front Combination Light Components (LED Type)
    G10939158Courtesy of MAZDA MOTORS CORP.
    COMPONENT DESCRIPTION

    1 Short cord
    (See Short Cord Removal Note .)
    2 Front turn light/Front side marker light bulb
    (See FRONT TURN LIGHT/FRONT SIDE MARKER LIGHT BULB REMOVAL/INSTALLATION [FRONT COMBINATION LIGHT (LED TYPE)] .)
  2. Assemble in the reverse order of disassembly.
