HVAC Control System Location Index (Auto A/C)

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

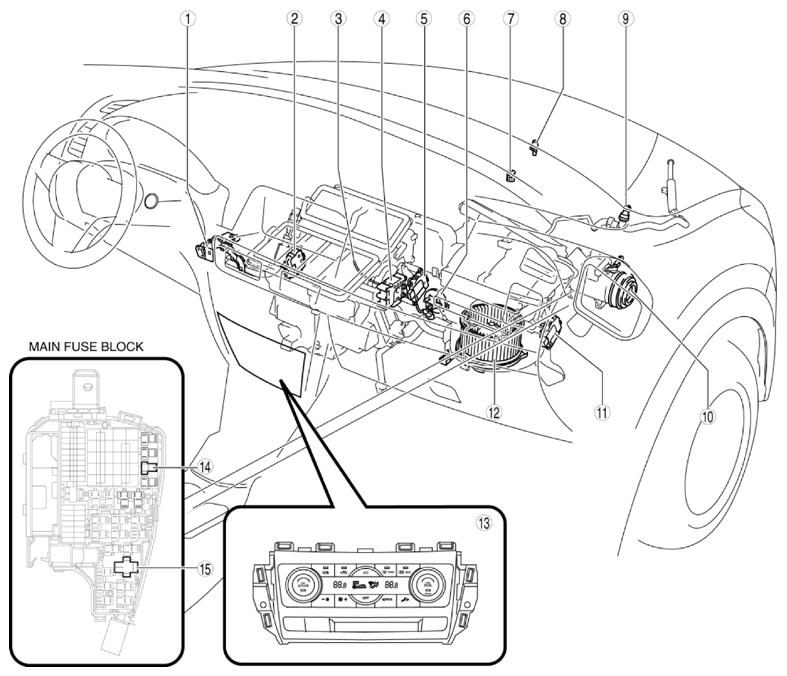

Fig 1: HVAC Control System Related Components

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Passenger compartment temperature sensor (See PASSENGER COMPARTMENT TEMPERATURE SENSOR REMOVAL/INSTALLATION (AUTO A/C) .) (See PASSENGER COMPARTMENT TEMPERATURE SENSOR INSPECTION (AUTO A/C) .)
2	Driver-side air mix actuator (See AIR MIX ACTUATOR REMOVAL/INSTALLATION (AUTO A/C) .) (See AIR MIX ACTUATOR INSPECTION (AUTO A/C) .)
3	Evaporator temperature sensor (See EVAPORATOR TEMPERATURE SENSOR REMOVAL/INSTALLATION (AUTO A/C) .) (See EVAPORATOR TEMPERATURE SENSOR INSPECTION (AUTO A/C) .)
4	Airflow mode actuator (See AIRFLOW MODE ACTUATOR REMOVAL/INSTALLATION (AUTO A/C) .) (See AIRFLOW MODE ACTUATOR INSPECTION (AUTO A/C) .)
5	Passenger-side air mix actuator (See AIR MIX ACTUATOR REMOVAL/INSTALLATION (AUTO A/C) .) (See AIR MIX ACTUATOR INSPECTION (AUTO A/C) .)
6	Blower fan controller (See BLOWER FAN CONTROLLER REMOVAL/INSTALLATION (AUTO A/C) .) (See BLOWER FAN CONTROLLER INSPECTION (AUTO A/C) .)
7	Solar radiation sensor (See SOLAR RADIATION SENSOR REMOVAL/INSTALLATION (AUTO A/C) .) (See SOLAR RADIATION SENSOR INSPECTION (AUTO A/C) .)
8	Ambient temperature sensor (See AMBIENT TEMPERATURE SENSOR REMOVAL/INSTALLATION (AUTO A/C) .) (See AMBIENT TEMPERATURE SENSOR INSPECTION (AUTO A/C) .)
9	Refrigerant pressure sensor (See REFRIGERANT PRESSURE SENSOR REMOVAL/INSTALLATION (AUTO A/C) .) (See REFRIGERANT PRESSURE SENSOR INSPECTION [FULL-AUTO AIR CONDITIONER) .)
10	Magnetic clutch (See MAGNETIC CLUTCH DISASSEMBLY/ASSEMBLY (AUTO A/C) .) (See MAGNETIC CLUTCH ADJUSTMENT (AUTO A/C) .) (See MAGNETIC CLUTCH INSPECTION (AUTO A/C) .)
11	Air intake actuator (See AIR INTAKE ACTUATOR REMOVAL/INSTALLATION (AUTO A/C) .) (See AIR INTAKE ACTUATOR INSPECTION (AUTO A/C) .)
12	Blower motor (See BLOWER MOTOR REMOVAL/INSTALLATION (AUTO A/C) .) (See BLOWER MOTOR INSPECTION (AUTO A/C) .)
13	Climate control unit (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION (AUTO A/C) .) (See CLIMATE CONTROL UNIT INSPECTION (AUTO A/C) .)
14	A/C relay (See RELAY LOCATION .) (See RELAY INSPECTION .)
15	Blower relay (See RELAY LOCATION .) (See RELAY INSPECTION .)
