Passenger Compartment Temperature Sensor Removal/Installation (Auto A/C): Notes

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Remove the following parts:
1. Driver-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
2. Driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
3. Switch panel (See SWITCH PANEL REMOVAL/INSTALLATION .)
4. Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
5. Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
6. Selector lever knob (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
7. Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [C66M-R] .)
8. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
9. Upper panel (See UPPER PANEL REMOVAL/INSTALLATION .)
10. Rear console (See REAR CONSOLE REMOVAL/INSTALLATION .)
11. Side wall (See SIDE WALL REMOVAL/INSTALLATION .)
12. Front console (See FRONT CONSOLE REMOVAL/INSTALLATION .)
13. Hood release lever from the lower panel (See HOOD LATCH AND RELEASE LEVER REMOVAL/INSTALLATION .)
14. Driver-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION .)
Remove the aspirator. (See ASPIRATOR REMOVAL NOTE .)

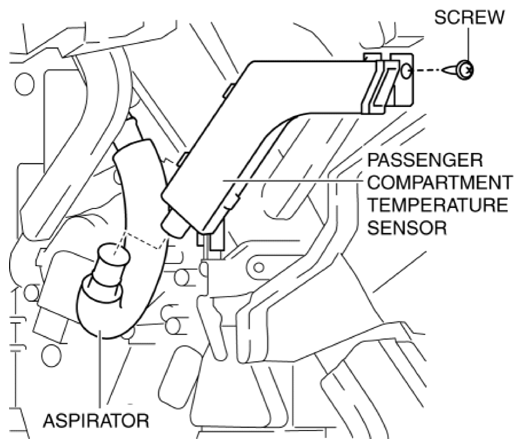

Fig 1: Identifying Passenger Compartment Temperature Sensor, Aspirator And Screw
Courtesy of MAZDA MOTORS CORP.
Remove the screw.
Disconnect the connector.

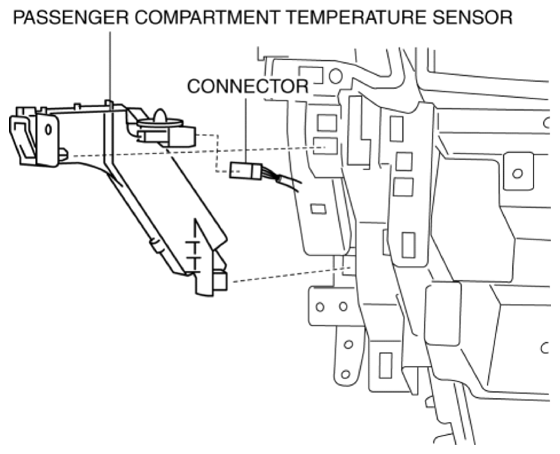

Fig 2: Identifying Passenger Compartment Temperature Sensor And Connector
Courtesy of MAZDA MOTORS CORP.
Remove the passenger compartment temperature sensor.
Install in the reverse order of removal.
