Refrigerant Pressure Sensor Removal/Installation (Auto A/C): Notes
WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
- Discharge the refrigerant. (See REFRIGERANT RECOVERY .) (See REFRIGERANT CHARGING .)

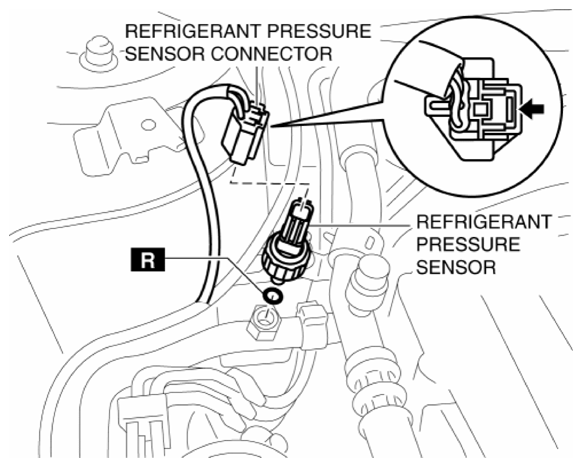

- Disconnect the refrigerant pressure sensor connector.CAUTION:
- If moisture or foreign material enters the refrigeration cycle, cooling ability will be lowered and abnormal noise will occur. Always immediately plug all open fittings after removing any refrigeration cycle parts to keep moisture or foreign material out of the cycle.
- Loosen the refrigerant pressure sensor using two spanners.
- Remove the refrigerant pressure sensor.
Tightening torque
- 10-11 N.m {102-112 kgf.cm, 89-97 in.lbf}
- Install in the reverse order of removal. (See REFRIGERANT PRESSURE SENSOR INSTALLATION NOTE .)
- Perform the refrigerant system performance test. (See REFRIGERANT SYSTEM PERFORMANCE TEST .)
