Radiator Removal Note

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

To prevent damage to the radiator core, protect it by covering the radiator surface with cardboard.
Lift the radiator and remove it from the radiator installation holes on the shroud panel.
Move the radiator and condenser to the engine side.
Remove the two bolts (lower side) which secure the condenser to the radiator.

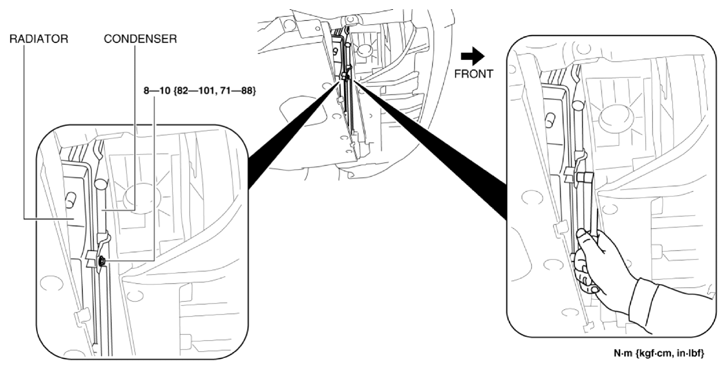

Fig 1: Removing Condenser Bolts (Lower Side)
Courtesy of MAZDA MOTORS CORP.
Remove the two bolts (upper side) which secure the condenser to the radiator.

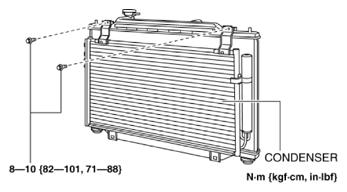

Fig 2: Identifying Condenser And Bolts With Torque Specification (Upper Side)
Courtesy of MAZDA MOTORS CORP.
Remove the radiator from above the engine compartment.

Fig 3: Removing Radiator From Engine Compartment

Courtesy of MAZDA MOTORS CORP.
