Exhaust System Removal/Installation: 2WD: Notes

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
Remove in the order indicated in the table.
Remove the insulator. (See EXHAUST SYSTEM INSULATOR REMOVAL/INSTALLATION .)
Install in the reverse order of removal.

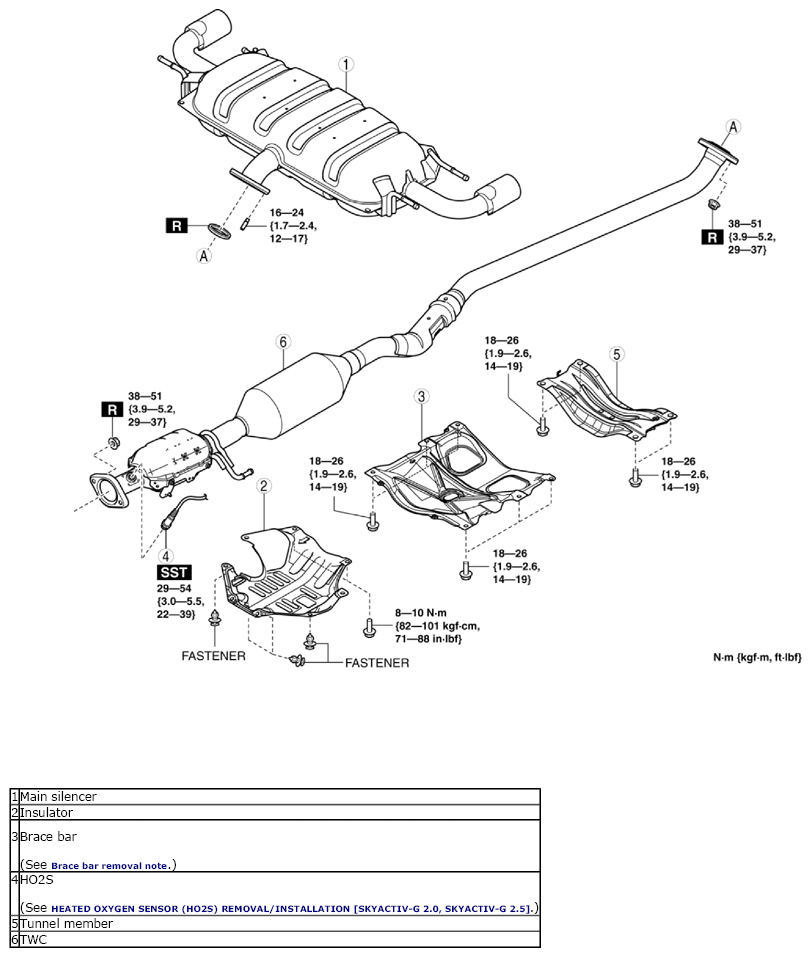

Step 1

Fig 1: Identifying Exhaust System Related Components With Torque Specification - 2WD (Step 1)

Courtesy of MAZDA MOTORS CORP.

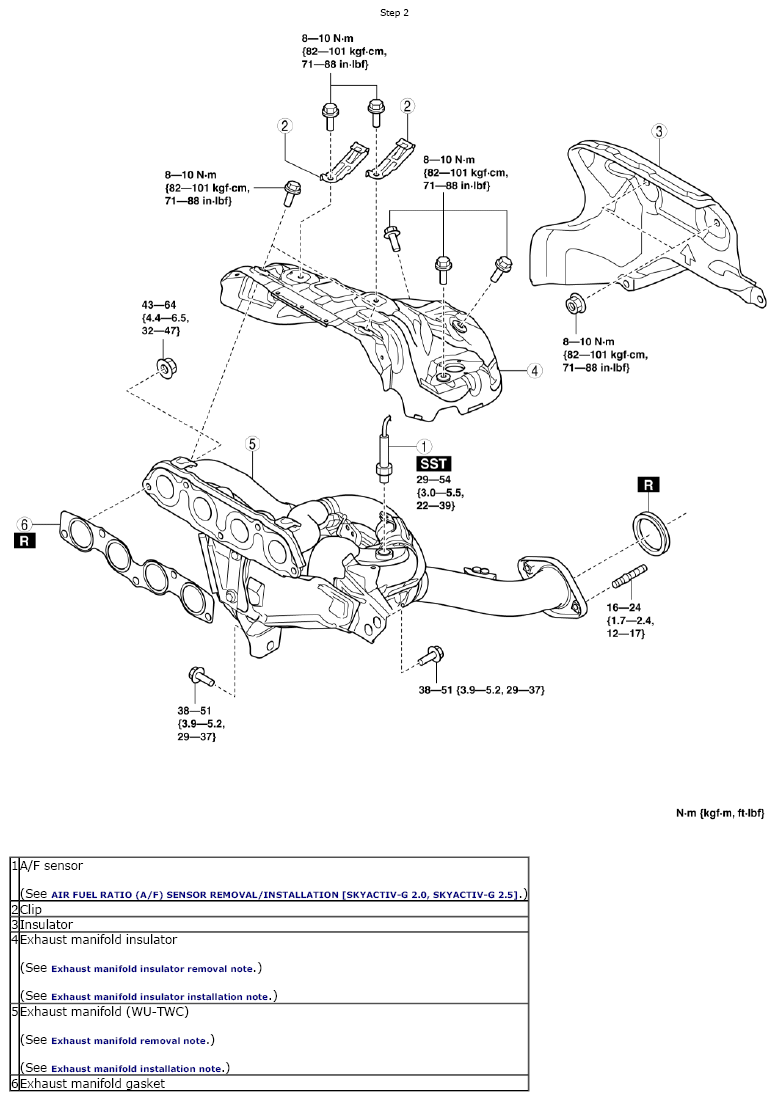

Step 2

Fig 2: Identifying Exhaust System Related Components With Torque Specification - 2WD (Step 2)

Courtesy of MAZDA MOTORS CORP.
