On-Board Diagnostic Wiring Diagram [SAS Control Module (Two-Step Deployment Control System - Us/CANADA Spec.)]

WARNING: This page is about a different car, the 2017 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

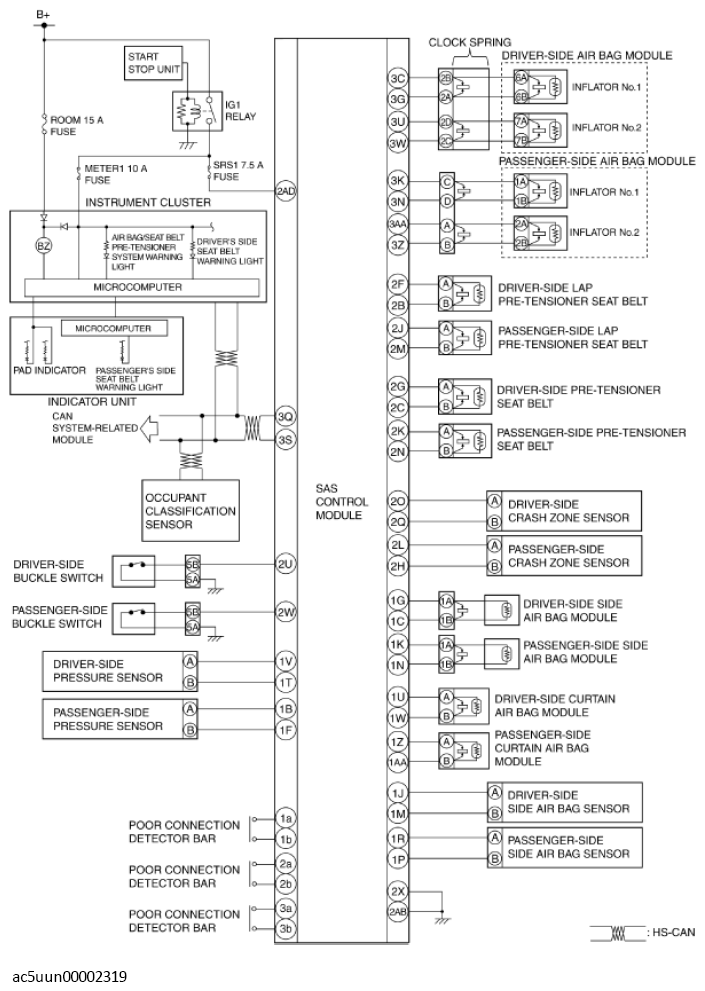

Fig 1: SAS Control Module Wiring Diagram (Two-Step Deployment Control System - US/Canada Spec.)

Courtesy of MAZDA MOTORS CORP.

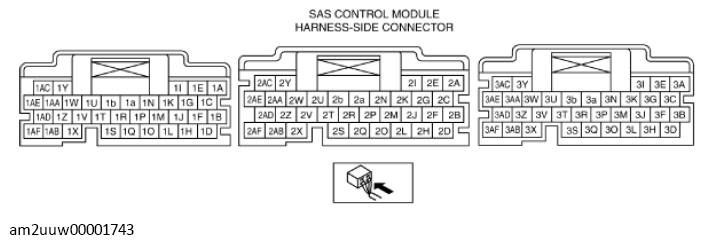

Fig 2: SAS Control Module Harness-Side Connector Terminals

Courtesy of MAZDA MOTORS CORP.
