| Description |
Headlight (RH) circuit malfunction |
| Detection condition |
- The auto leveling control module detected an open circuit in the headlight (RH) circuit during the headlight LO on control with the ignition switched ON (engine off or on).
|
| Fail-safe |
- Control of the headlight auto leveling system is continued.
|
| POSSIBLE CAUSE |
- Front combination light (RH) connector or terminal malfunction
- Auto leveling control module connector or terminal malfunction

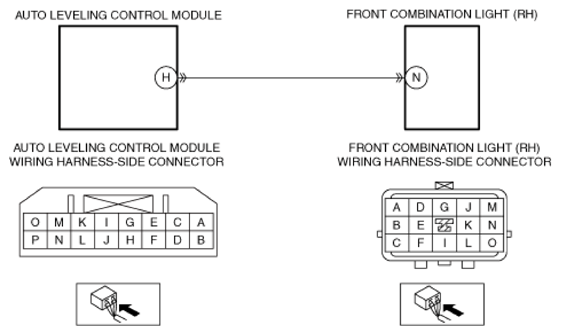

- Short to ground in wiring harness between auto leveling control module terminal H and front combination light (RH) terminal N
- Open circuit in wiring harness between auto leveling control module terminal H and front combination light (RH) terminal N
- Front combination light (RH) malfunction
- Auto leveling control module malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
