Troubleshooting Procedure

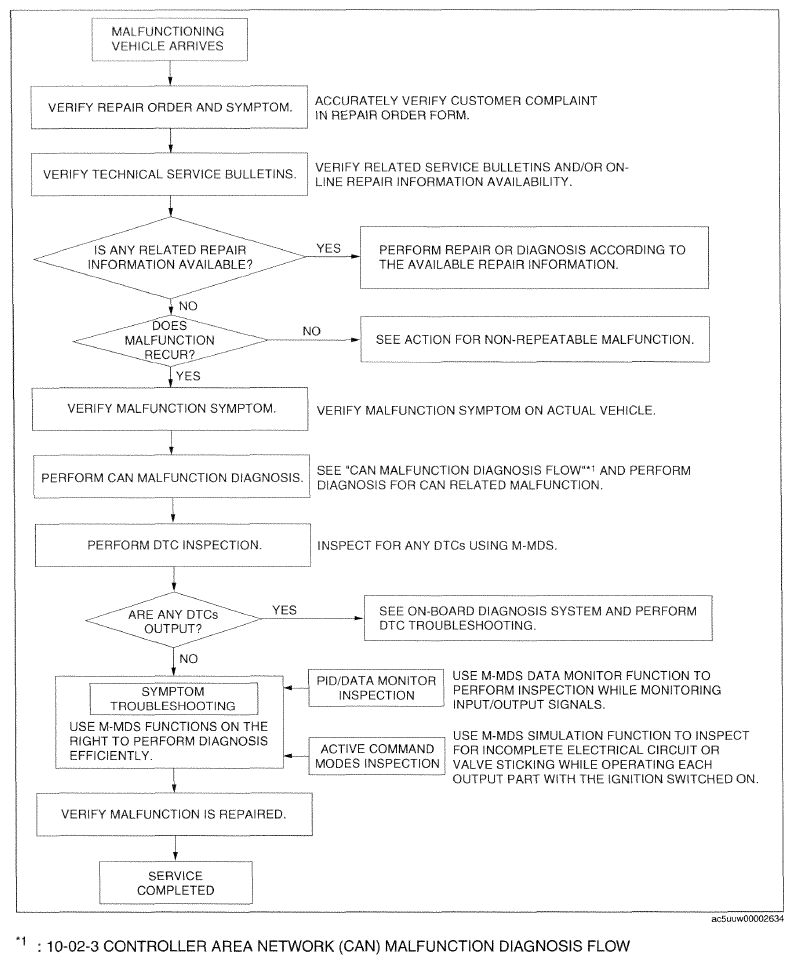

G09760401Courtesy of MAZDA MOTORS CORP.
  1. *1: (See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [TYPE-A] .)
