Vehicle Interior, Front (With Advanced Keyless Entry System)

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Selector lever knob (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
    2. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
    3. Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION .)
    4. Front console (See FRONT CONSOLE REMOVAL/INSTALLATION .)
    5. Side wall (See SIDE WALL REMOVAL/INSTALLATION .)
    6. Rear console panel (See REAR CONSOLE PANEL REMOVAL/INSTALLATION .)
    7. Rear console (See REAR CONSOLE REMOVAL/INSTALLATION .)

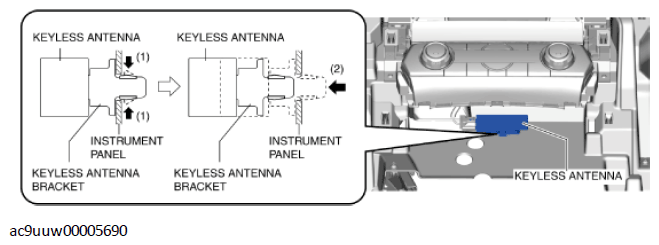

  3. While pressing the keyless antenna bracket tabs in the direction of arrow (1) shown in the figure, press it in the direction of arrow (2) to detach the keyless antenna bracket tabs from the instrument panel.
    G11432720Courtesy of MAZDA MOTORS CORP.
  4. Disconnect the connector from the keyless antenna.
    G11432721Courtesy of MAZDA MOTORS CORP.
  5. Insert a tape-wrapped flat head screwdriver into the position shown in the figure.
    G11273514Courtesy of MAZDA MOTORS CORP.
  6. Move the tape-wrapped flat head screwdriver in the direction of arrow (1) shown in the figure to press the keyless antenna bracket tab, and pull it in the direction of arrow (2) to detach the keyless antenna bracket from the keyless antenna.
  7. Remove the keyless antenna bracket from the keyless antenna.
  8. Install in the reverse order of removal.
