LED Illumination Inspection

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
    2. Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
    3. Upper column cover (See COLUMN COVER REMOVAL/INSTALLATION .)
    4. Driver-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
    5. Meter hood (See METER HOOD REMOVAL/INSTALLATION .)
    6. Push button start (See PUSH BUTTON START REMOVAL/INSTALLATION .)

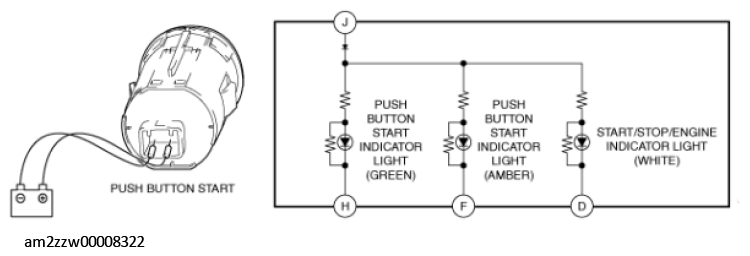

  3. Apply battery positive voltage and connect the ground to the push button start terminals and verify that the LED illuminates as indicated in the table.
G11273557Courtesy of MAZDA MOTORS CORP.
G11273558Courtesy of MAZDA MOTORS CORP.
