Front Door Module Panel Removal/Installation

  1. Perform the front door glass preparation. (See FRONT DOOR GLASS REMOVAL/INSTALLATION .)
  2. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  3. Remove the following parts:
    1. Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
    2. Front door speaker (See FRONT DOOR SPEAKER REMOVAL/INSTALLATION .)
    3. Front door glass (See FRONT DOOR GLASS REMOVAL/INSTALLATION .)
    4. Pressure sensor (With pressure sensor) (See PRESSURE SENSOR REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM - US/CANADA SPEC.] .)
    NOTE:
    • After removing the front door trim, secure the inner handle using screw so that the procedure is performed smoothly.
  4. Disconnect the connectors.
    G11430871Courtesy of MAZDA MOTORS CORP.
  5. Remove the fastener.
    G11430872Courtesy of MAZDA MOTORS CORP.

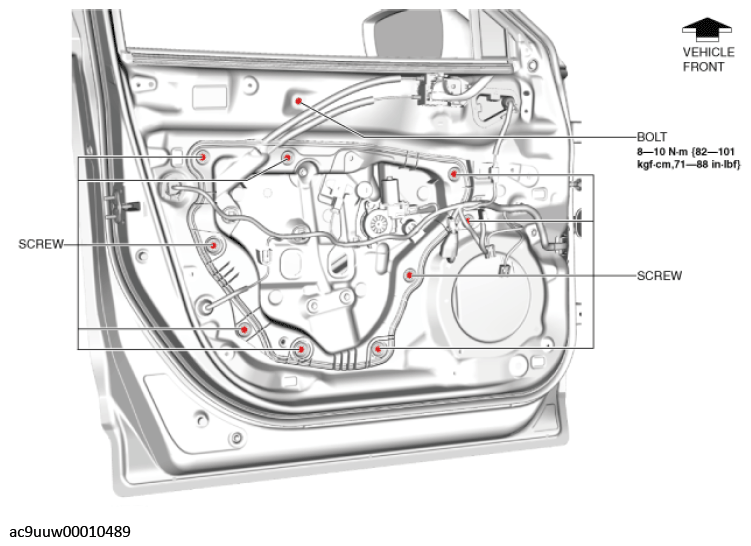

  6. Remove the bolt and screws.
    Fig 1: Front Door Inner Panel Bolt With Torque Specification
    G12265375Courtesy of MAZDA MOTORS CORP.
    CAUTION:
    • If the protector does not come out easily from the front door inner panel, pulling the front door module panel forcibly may cause the front door module panel to deform. If the protector does not come out easily, remove the front door module panel while gradually removing the protector.
  7. Move the front door module panel in the direction of the arrow shown in the figure and pull the front door module panel pin out of the front door inner panel.
    G11430874Courtesy of MAZDA MOTORS CORP.

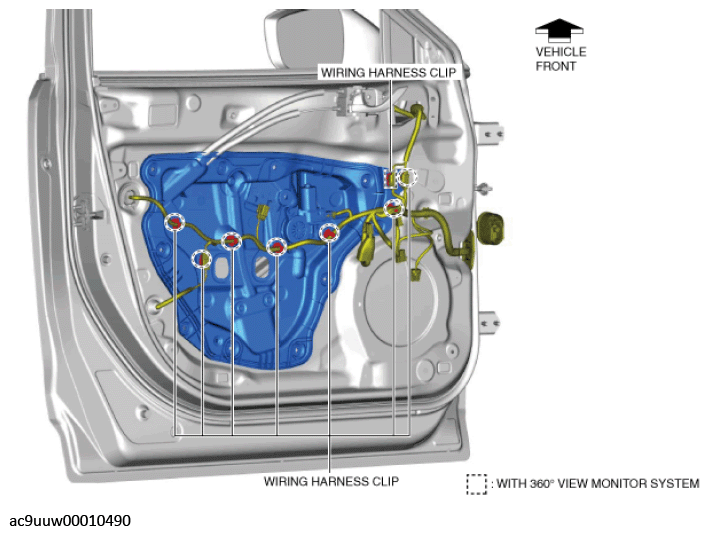

  8. Remove the wiring harness clips and set the front door wiring harness aside.
    G12265377Courtesy of MAZDA MOTORS CORP.
    CAUTION:
    • Remove the front door module panel while verifying that the front power window regulator and the front door inner panel do not contact each other. If these parts contact each other, it could damage the front door module panel and the front power window regulator.
  9. Move the front door module panel in the direction of the arrow shown in the figure so that the upper part of the front power window regulator does not contact the front door inner panel, and remove the front door module panel and the front power window regulator as a single unit.
    G11430876Courtesy of MAZDA MOTORS CORP.
  10. Remove the front power window motor. (See FRONT POWER WINDOW MOTOR REMOVAL/INSTALLATION .)
    G11430877Courtesy of MAZDA MOTORS CORP.
  11. Remove the front power window regulator. (See FRONT POWER WINDOW REGULATOR REMOVAL/INSTALLATION .)
  12. Install in the reverse order of removal.
