Side Panel Removal Note

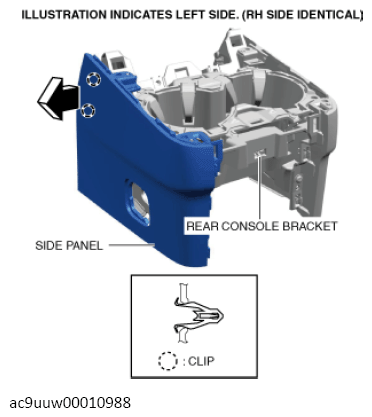

  1. Move the side panel in the direction of the arrow shown in the figure and detach the clips from the rear console bracket.
    G13702019Courtesy of MAZDA MOTORS CORP.

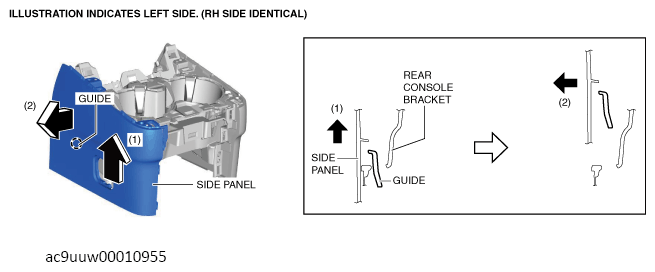

  2. Move the side panel in the order of arrows (1) and (2) shown in the figure, and remove it while detaching the guides.
G13450624Courtesy of MAZDA MOTORS CORP.
