Oil Shower Pipe Installation Note

Install the oil shower pipe in the order shown in the figure.

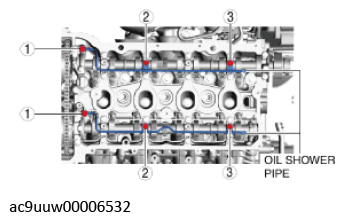

Fig 1: Oil Shower Pipe Bolts Tightening Sequence

Courtesy of MAZDA MOTORS CORP.

Tightening torque

TORQUE SPECIFICATION

Installation position	Tightening torque
1	9-12 N.m {92-122 kgf.cm, 80-106 in.lbf}
2, 3	8-10 N.m {82-101 kgf.cm, 71-88 in.lbf}
