DTC P0038-00: Ho2S Heater Control Circuit High Input: Notes

DTC P0038:00 DETECTION CONDITION AND POSSIBLE CAUSE

DTC P0038:00	HO2S heater control circuit high input
DETECTION CONDITION	When the PCM controls the HO2S heater, the voltage input to the PCM is too high. Diagnostic support note This is a continuous monitor (A/F sensor heater, HO2S heater). The check engine light illuminates if the PCM detects the above malfunction condition in two consecutive drive cycles or in one drive cycle while the DTC for the same malfunction has been stored in the PCM. PENDING CODE is available if the PCM detects the above malfunction condition during first drive cycle. FREEZE FRAME DATA/Snapshot data is available. DTC is stored in the PCM memory.
FAIL-SAFE FUNCTION	Stops fuel feedback control

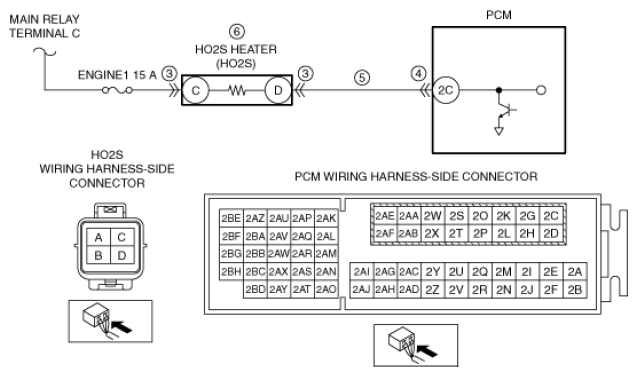

POSSIBLE CAUSE	HO2S connector or terminals malfunction PCM connector or terminals malfunction Short to power supply in wiring harness between HO2S terminal D and PCM terminal 2C HO2S heater malfunction PCM malfunction
Courtesy of MAZDA MOTORS CORP.
