DTC P0460-00: Fuel Level Sensor Circuit Malfunction: Notes
DTC P0460:00 DETECTION CONDITION AND POSSIBLE CAUSE
| DTC P0460:00 |
Fuel level sensor circuit malfunction |
| DETECTION CONDITION |
- The PCM monitors the fuel tank level sensor output signal. If the difference between maximum and minimum value of input signal is 25% or more for 14 s, the PCM determines that there is a fuel level sensor circuit malfunction.
MONITORING CONDITIONS
- The following DTCs are not detected:
- Fuel gauge sender unit: P0462:00, P0463:00
Diagnostic support note
- This is a continuous monitor (CCM).
- The check engine light illuminates if the PCM detects the above malfunction condition in two consecutive drive cycles or in one drive cycle while the DTC for the same malfunction has been stored in the PCM.
- PENDING CODE is available if the PCM detects the above malfunction condition during first drive cycle.
- FREEZE FRAME DATA/Snapshot data is available.
- DTC is stored in the PCM memory.
|
| FAIL-SAFE FUNCTION |
Not applicable |
| POSSIBLE CAUSE |
- Instrument cluster malfunction
- Incorrectly installed fuel gauge
- Fuel level input signal circuit malfunction
- Fuel gauge sender unit (main) connector or terminals malfunction
- Fuel gauge sender unit (sub) connector or terminals malfunction (AWD)
- Rear body control module (RBCM) connector or terminals malfunction

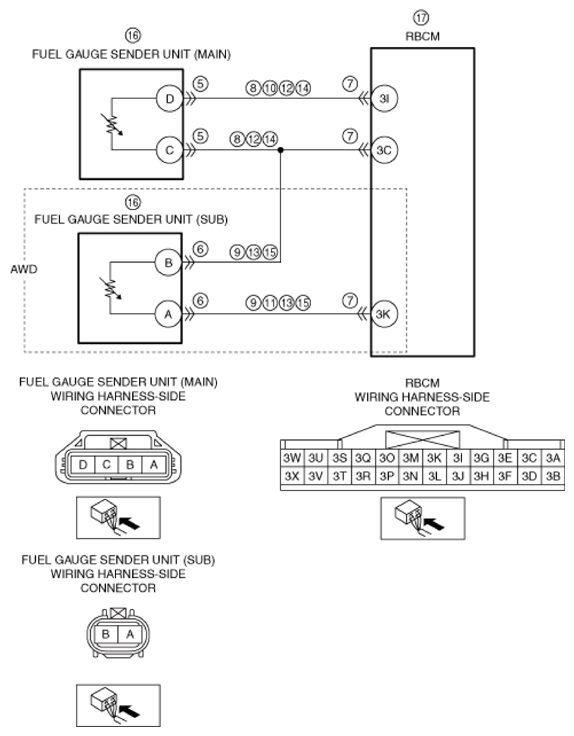

- Short to power supply in wiring harness between the following terminals:
- Fuel gauge sender unit (main) terminal D-Rear body control module (RBCM) terminal 3I
- Fuel gauge sender unit (main) terminal C-Rear body control module (RBCM) terminal 3C
- Fuel gauge sender unit (sub) terminal A-Rear body control module (RBCM) terminal 3K (AWD)
- Fuel gauge sender unit (sub) terminal B-Rear body control module (RBCM) terminal 3C (AWD)
- Short to ground in wiring harness between the following terminals:
- Fuel gauge sender unit (main) terminal D-Rear body control module (RBCM) terminal 3I
- Fuel gauge sender unit (main) terminal C-Rear body control module (RBCM) terminal 3C
- Fuel gauge sender unit (sub) terminal A-Rear body control module (RBCM) terminal 3K (AWD)
- Fuel gauge sender unit (sub) terminal B-Rear body control module (RBCM) terminal 3C (AWD)
- Fuel gauge sender unit (main) signal circuit and ground circuit are shorted to each other
- Fuel gauge sender unit (sub) signal circuit and ground circuit are shorted to each other (AWD)
- Open circuit in wiring harness between the following terminals:
- Fuel gauge sender unit (main) terminal D-Rear body control module (RBCM) terminal 3I
- Fuel gauge sender unit (main) terminal C-Rear body control module (RBCM) terminal 3C
- Fuel gauge sender unit (sub) terminal A-Rear body control module (RBCM) terminal 3K (AWD)
- Fuel gauge sender unit (sub) terminal B-Rear body control module (RBCM) terminal 3C (AWD)
- Fuel gauge sender unit (main) malfunction
- Fuel gauge sender unit (sub) malfunction (AWD)
- Rear body control module (RBCM) malfunction
- PCM malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
