Front Combination Light Removal/Installation: Notes
WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- Fogging or condensation on the inside of the front combination lights may occur due to a natural phenomenon occurring as a result of a temperature difference between the interior and exterior of the combination lights. However, it has no effect on the light performance because the temperature inside the front combination lights rises after illuminating the headlights or a period of time has elapsed.
- Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
- Remove the set plate. (See SET PLATE REMOVAL/INSTALLATION .)
- Remove the front bumper. (See FRONT BUMPER REMOVAL
.) (See FRONT BUMPER INSTALLATION
.)CAUTION:
- When removing the front combination light from the body, it could interfere with the body and cause scratching or damage to the body. When removing the front combination light from the body, apply protective tape to the body.

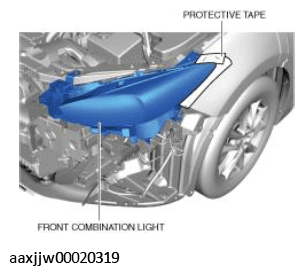

- To prevent scratches or damage, affix protective tape to the position shown in the figure.

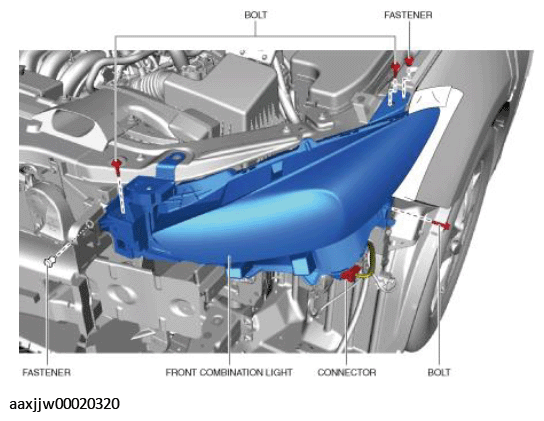

- Disconnect the connector.
- Remove the bolts. (See BOLT INSTALLATION NOTE .)
- Remove the fasteners.

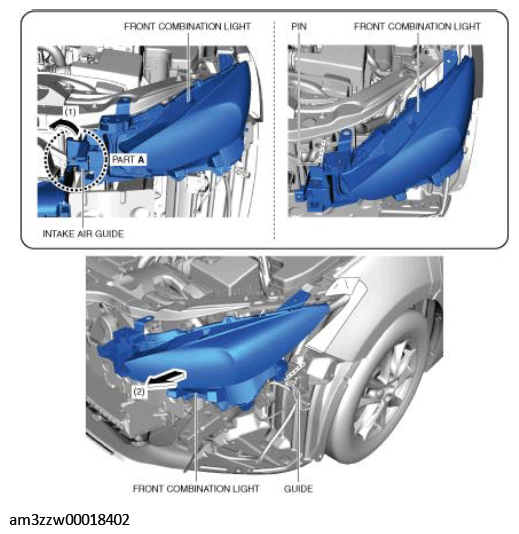

- While partially bending part A of the intake air guide in the direction of arrow (1) shown in the figure, remove the front combination light in the direction of arrow (2) shown in the figure.
- Install in the reverse order of removal.
- Adjust the headlight aiming. (See HEADLIGHT AIMING .)
