Liftgate Grommet Installation Note

WARNING: This page is about a different car, the 2017 Mazda CX-9. However, it is still accessible from the selected car via links, so may be relevant.

Install the liftgate grommet using the following procedure:
CAUTION:
- Install the inner liftgate grommet so that there is no gap between the liftgate grommet and the inner liftgate grommet. Otherwise, it may cause water leakage.
- After installing the liftgate grommet, shake the inner liftgate grommet to verify that the tabs are securely engaged. If there is a gap between the liftgate grommet and the liftgate, it may cause water leakage.
1. Engage a new inner liftgate grommet.

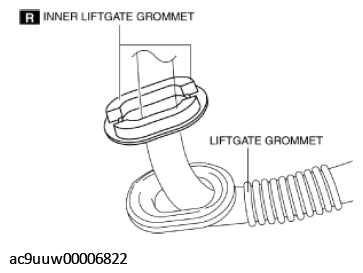

  Fig 1: Inner Liftgate Grommet And Liftgate Grommet
  Courtesy of MAZDA MOTORS CORP.
2. Install the inner liftgate grommet to the liftgate grommet.

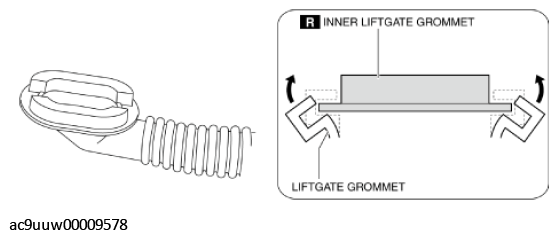

  Fig 2: Installing Inner Liftgate Grommet To Liftgate Grommet
  Courtesy of MAZDA MOTORS CORP.
3. Press the inner liftgate grommet into the liftgate side and engage the tabs of the inner liftgate grommet with the liftgate side.

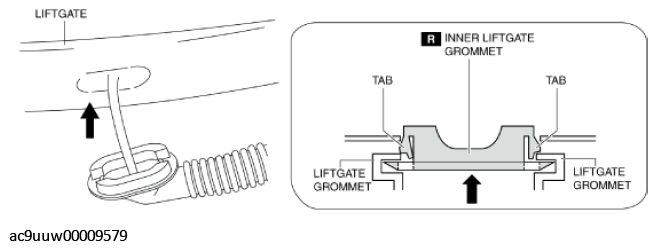

  Fig 3: Pressing Inner Liftgate Grommet Into Liftgate Side
  Courtesy of MAZDA MOTORS CORP.
