Male Wedge Installation Note

WARNING: This page is about a different car, the 2017 Mazda CX-9. However, it is still accessible from the selected car via links, so may be relevant.

Remove the double-sided adhesive tape on the male wedge.
Remove any grease or dirt from the adhesion surface of the male wedge.
Affix the double-sided adhesive tape to the position shown in the figure.

Fig 1: Affixing Double-Sided Adhesive Tape To Male Wedge
Courtesy of MAZDA MOTORS CORP.
Remove any grease or dirt from the adhesion surface of the liftgate.
Peel off the backing from the double-sided adhesive tape.

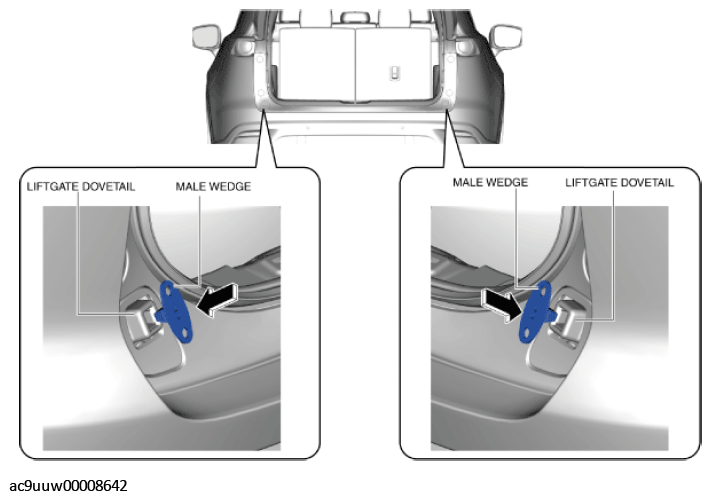

Move the male wedges in the direction of the arrow shown in the figure and insert it into the liftgate dovetails.

Fig 2: Moving Male Wedges
Courtesy of MAZDA MOTORS CORP.
Fully close the liftgate.
Open the liftgate.
Install in the bolts.

Fig 3: Male Wedges And Bolts With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Install in the male wedges.
