Power Liftgate (PLG) Drive Unit Installation Note

WARNING: This page is about a different car, the 2017 Mazda CX-9. However, it is still accessible from the selected car via links, so may be relevant.

When a power liftgate (PLG) drive unit is to be reused, perform the following procedure:
1. Remove the packing remaining on the power liftgate (PLG) drive unit.

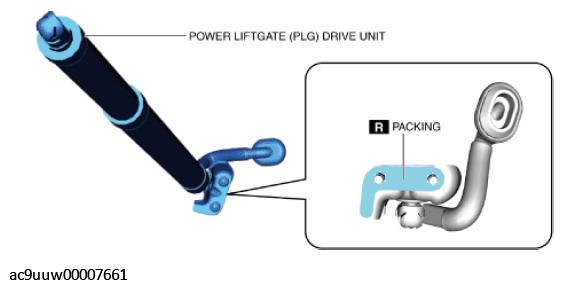

  Fig 1: Packing On Power Liftgate Drive Unit
  Courtesy of MAZDA MOTORS CORP.
2. Affix new packing to the position shown in the figure.
