Power Liftgate (PLG) Touch Sensor Removal/Installation

WARNING: This page is about a different car, the 2017 Mazda CX-9. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the following parts:
1. Liftgate upper trim (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION .)
2. Liftgate side trim (See LIFTGATE SIDE TRIM REMOVAL/INSTALLATION .)
3. Liftgate recess cover (See LIFTGATE RECESS REMOVAL/INSTALLATION .)
4. Power liftgate (PLG) rear switch (With power liftgate (PLG) system) (See POWER LIFTGATE (PLG) REAR SWITCH REMOVAL/INSTALLATION .)
5. Liftgate lower trim (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION .)

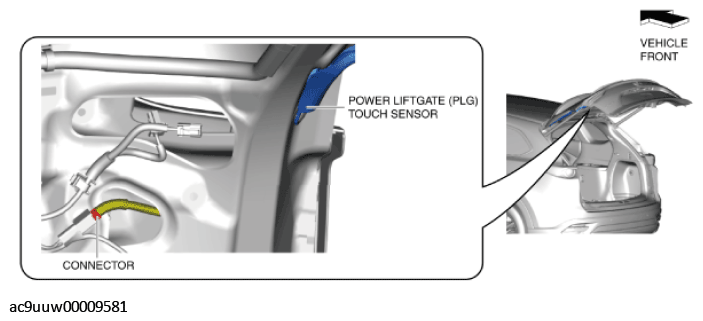

Disconnect the connector.

Fig 1: Power Liftgate Touch Sensor And Connector
Courtesy of MAZDA MOTORS CORP.

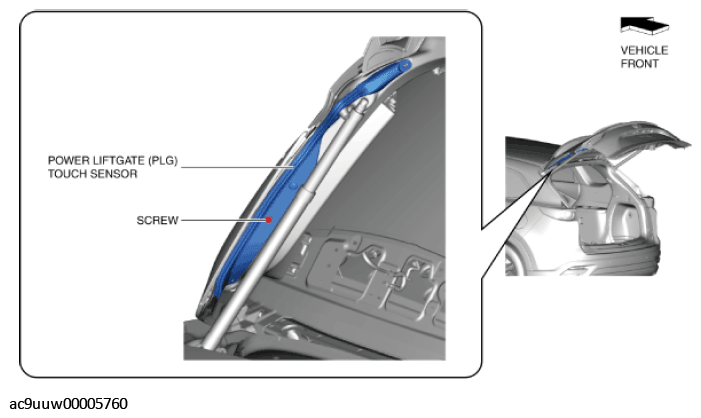

Remove the screw.

Fig 2: Power Liftgate Touch Sensor And Screw
Courtesy of MAZDA MOTORS CORP.

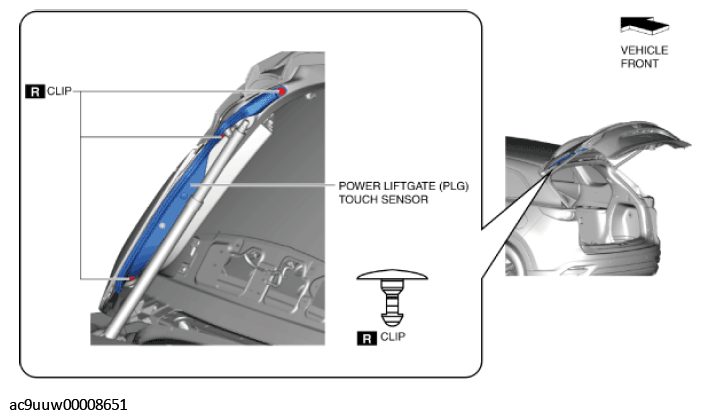

Remove the clips.

Fig 3: Power Liftgate Touch Sensor And Clips
Courtesy of MAZDA MOTORS CORP.

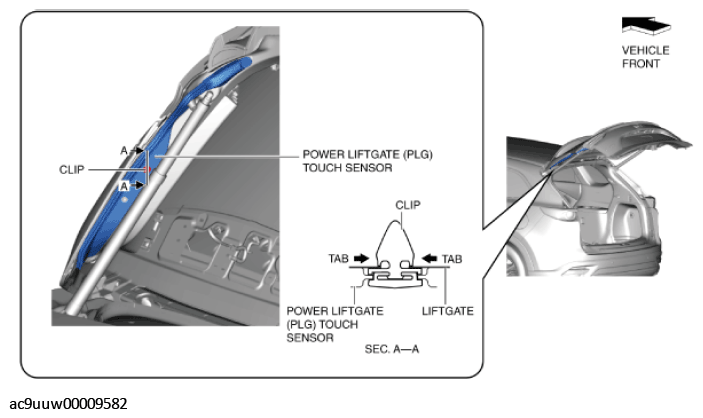

Press the clip tabs in the direction of the arrow shown in the figure and detach the clip from the liftgate.

Fig 4: Pressing Clip Tabs
Courtesy of MAZDA MOTORS CORP.

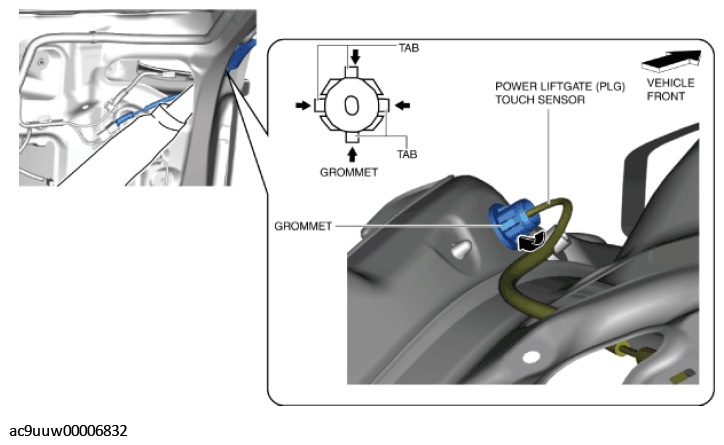

Move the power liftgate (PLG) touch sensor grommet in the direction of the arrow shown in the figure and detach the tabs.

Fig 5: Moving Power Liftgate Touch Sensor Grommet
Courtesy of MAZDA MOTORS CORP.
Pull the wiring harness out of the vehicle body.
Remove the power liftgate (PLG) touch sensor.

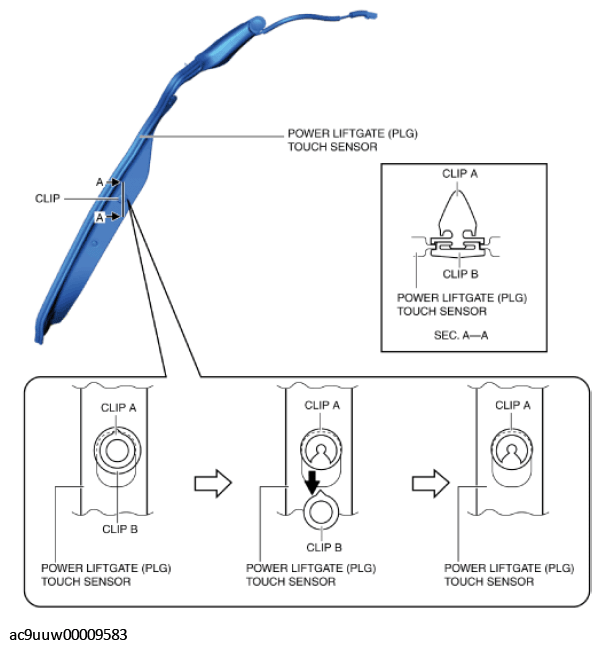

Move the clip B in the direction of the arrow shown in the figure and remove it.

Fig 6: Moving Power Liftgate Touch Sensor Clip B
Courtesy of MAZDA MOTORS CORP.
Remove the clip A.
Install in the reverse order of removal.
