Front Console Disassembly/Assembly
WARNING: This page is about a different car, the 2017 Mazda CX-9. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the commander switch. (See COMMANDER SWITCH REMOVAL/INSTALLATION .)

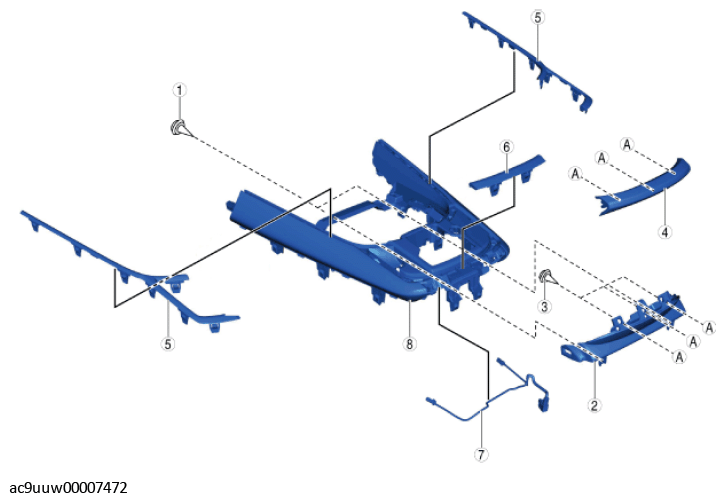

- Disassemble in the order indicated in the table.COMPONENT DESCRIPTION
1 Screw A 2 Front console cover 3 Screw B 4 Protector 5 Side plate 6 Center plate 7 Short code 8 Front console panel - Assemble in the reverse order of disassembly.
