Rear Console Disassembly/Assembly: Notes
WARNING: This page is about a different car, the 2017 Mazda CX-9. However, it is still accessible from the selected car via links, so may be relevant.
- Disassemble in the order indicated in the table.

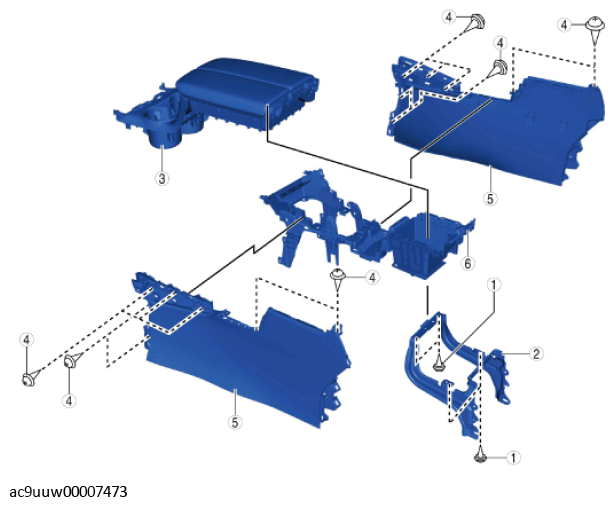

Courtesy of MAZDA MOTORS CORP. COMPONENT DESCRIPTION
| 1 |
Screw A |
| 2 |
Rear console bracket |
| 3 |
Rear console component |
| 4 |
Screw C |
| 5 |
Side panel |
| 6 |
Rear console box |
- Assemble in the reverse order of disassembly.
