Short-cord Assembly Note

WARNING: This page is about a different car, the 2017 Mazda CX-9. However, it is still accessible from the selected car via links, so may be relevant.
  1. When assembling the short-cord, press it into the groove of the CMU.

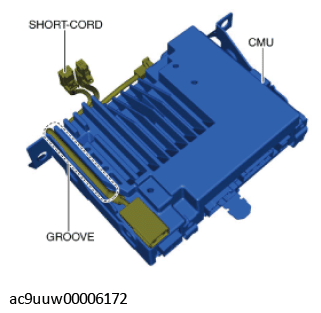

    Fig 1: Short-Cord, Groove And CMU
    G11431004Courtesy of MAZDA MOTORS CORP.
