Multiplex Slow Blow Fuse Removal/Installation

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
Remove the relay and fuse block upper cover. (See RELAY AND FUSE BLOCK REMOVAL/INSTALLATION .)
Remove the front body control module (FBCM). (See FRONT BODY CONTROL MODULE (FBCM) REMOVAL/INSTALLATION .)
Remove the bolt.

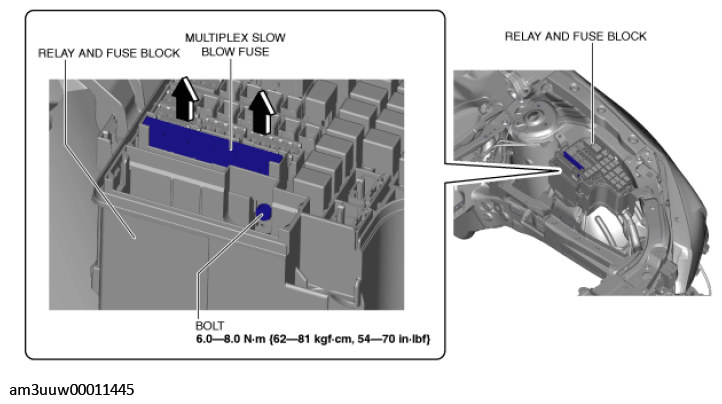

Fig 1: Removing Multiplex Slow Blow Fuse
Courtesy of MAZDA MOTORS CORP.
Remove the multiplex slow blow fuse.
Install in the reverse order of removal.
