Climate Control Unit Disassembly/Assembly (Manual A/C): Notes

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disassemble in the order indicated in the figure.

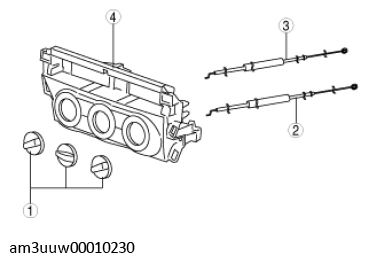

    Fig 1: Disassembled View Of Climate Control Unit (Manual Air Conditioner)
    G11529338Courtesy of MAZDA MOTORS CORP.
    COMPONENT DESCRIPTION

    1 Dial
    2 Airflow mode wire
    (See Wire Removal Note .)
    3 Air mix wire
    (See Wire Removal Note .)
    4 Climate control unit
  2. Assemble in the reverse order of disassembly.
