Front Combination Light Disassembly/Assembly: Notes
WARNING: This page is about a different car, the 2017 Mazda CX-9. However, it is still accessible from the selected car via links, so may be relevant.
- Disassemble in the order shown in the figure.

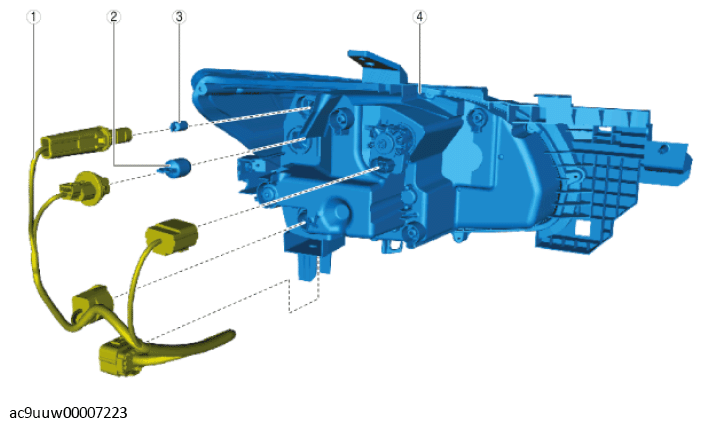

Without adaptive front lighting system (AFS)
Courtesy of MAZDA MOTORS CORP.
COMPONENT DESCRIPTION1 Short cord
(See Short Cord Removal Note .)2 Front turn light bulb
(See FRONT TURN LIGHT BULB REMOVAL/INSTALLATION .)3 Parking light/Front side marker light bulb
(See PARKING LIGHT BULB REMOVAL/INSTALLATION .)
(See FRONT SIDE MARKER LIGHT BULB REMOVAL/INSTALLATION .)4 Front combination light With adaptive front lighting system (AFS)

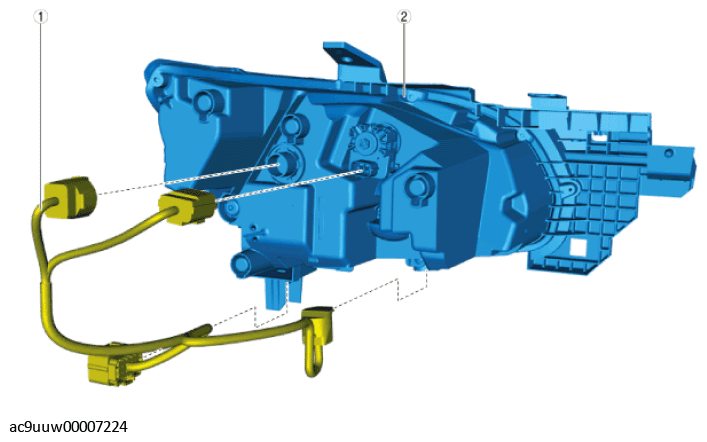

Courtesy of MAZDA MOTORS CORP.
COMPONENT DESCRIPTION1 Short cord
(See Short Cord Removal Note .)2 Front combination light - Assemble in the reverse order of disassembly.
