On-Board Diagnostic Wiring Diagram [SAS Control Module (Two-Step Deployment Control System)]

WARNING: This page is about a different car, the 2017 Mazda CX-9. However, it is still accessible from the selected car via links, so may be relevant.

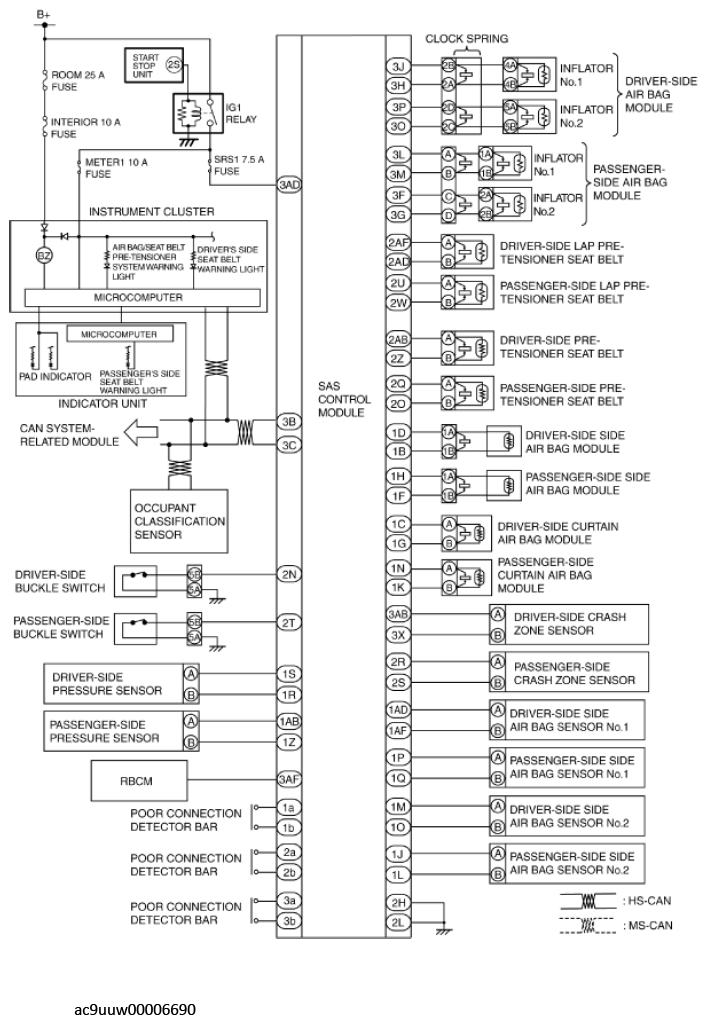

Fig 1: SAS Control Module (Two-Step Deployment Control System) Circuit Diagram

Courtesy of MAZDA MOTORS CORP.

Fig 2: SAS Control Module Harness-Side Connector Terminals

Courtesy of MAZDA MOTORS CORP.
