Disc Pad (Front) Replacement: Notes
WARNING: This page is about a different car, the 2017 Mazda CX-9. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the wheel and tire. (See WHEEL AND TIRE REMOVAL/INSTALLATION .)
- Remove in the order indicated in the table.
- Install in the reverse order of removal.
- After installation, depress the brake pedal a few times, rotate the wheel by hand, and verify that the brake does not drag.

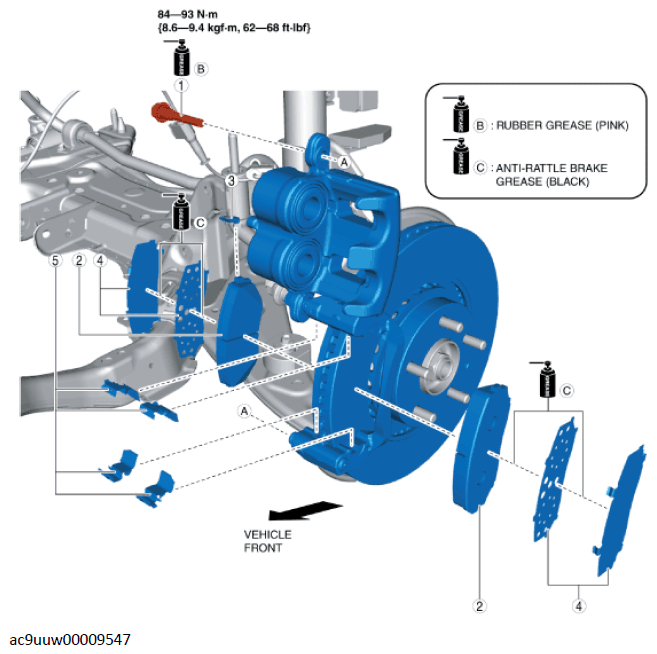

COMPONENT DESCRIPTION
| 1 | Bolt (See Bolt Removal Note .) (See Disc Pad, Bolt Installation Note .) |
| 2 | Disc pad (See Disc Pad, Bolt Installation Note .) |
| 3 | Wear indicator |
| 4 | Shim |
| 5 | Guide plate |
