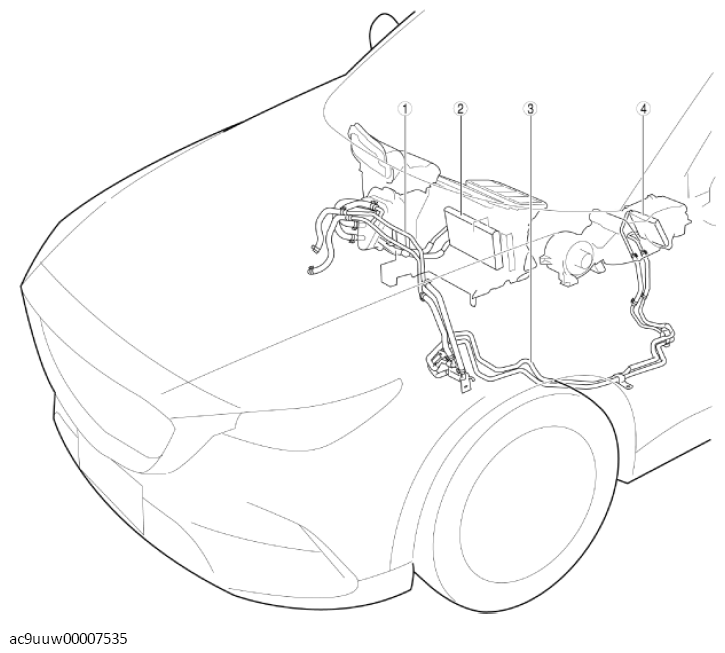

Structural View (Heater System)
WARNING: This page is about a different car, the 2017 Mazda CX-9. However, it is still accessible from the selected car via links, so may be relevant.
COMPONENT DESCRIPTION
| 1 | Heater pipe and heater hose (front) (See HEATER PIPE AND HOSE COMPONENT REMOVAL/INSTALLATION .) |
| 2 | Front heater core (See FRONT HEATER CORE INSPECTION .) |
| 3 | Heater pipe and heater hose (rear) (See HEATER PIPE AND HOSE COMPONENT REMOVAL/INSTALLATION .) |
| 4 | Rear heater core (See REAR HEATER CORE INSPECTION .) |
