DTC B1088-88; Lin Communication Error: Notes

WARNING: This page is about a different car, the 2017 Mazda CX-9. However, it is still accessible from the selected car via links, so may be relevant.
DETECTION CONDITION & POSSIBLE CAUSE

Description LIN communication error
Detection condition
  • LIN bus communication line malfunction detected for 1 s or more
Fail-safe Not applicable
Possible cause
  • Malfunction in LIN bus communication line
    • Auto light sensor/humidity sensor/rain sensor terminal C-Front body control module (FBCM) terminal 2G (With auto light sensor/humidity sensor/rain sensor)
  • Front body control module (FBCM) malfunction

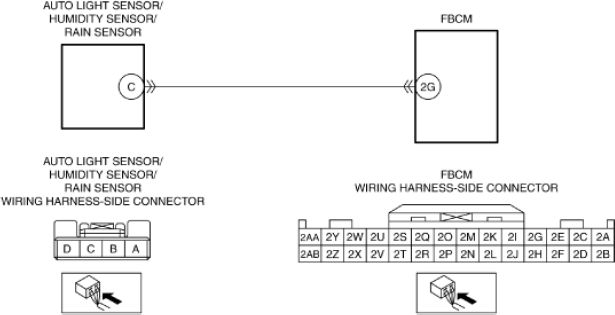

G11435487
