DTC B1044-01; Auto Leveling Sensor Circuit Malfunction: Notes
WARNING: This page is about a different car, the 2017 Mazda CX-9. However, it is still accessible from the selected car via links, so may be relevant.
DETECTION CONDITION AND POSSIBLE CAUSE
| Description |
Auto leveling sensor circuit malfunction |
| Detection condition |
- Adaptive front lighting system (AFS) control module detected the auto leveling sensor circuit voltage of 0.25 V or less or 4.75 V or more for 10 s or more with the ignition switched ON (engine off or on).
|
| Fail-safe |
- The swivel actuator is moved to the center.
- The headlight leveling actuator is stopped at the position when the malfunction is determined.
|
| Possible cause |
- Auto leveling sensor connector or terminal malfunction
- Adaptive front lighting system (AFS) control module connector or terminal malfunction

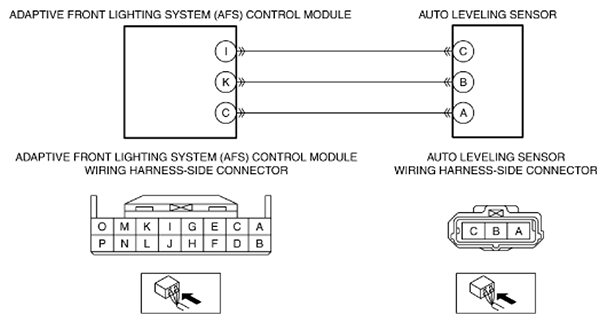

- Short to ground in wiring harness between the following terminals:
- Adaptive front lighting system (AFS) control module terminal I-Auto leveling sensor terminal C
- Adaptive front lighting system (AFS) control module terminal K-Auto leveling sensor terminal B
- Adaptive front lighting system (AFS) control module terminal C- Auto leveling sensor terminal A
- Short to power supply in wiring harness between the following terminals:
- Adaptive front lighting system (AFS) control module terminal I-Auto leveling sensor terminal C
- Adaptive front lighting system (AFS) control module terminal K-Auto leveling sensor terminal B
- Adaptive front lighting system (AFS) control module terminal C- Auto leveling sensor terminal A
- Open circuit in wiring harness between the following terminals:
- Adaptive front lighting system (AFS) control module terminal I-Auto leveling sensor terminal C
- Adaptive front lighting system (AFS) control module terminal K-Auto leveling sensor terminal B
- Adaptive front lighting system (AFS) control module terminal C- Auto leveling sensor terminal A
- Auto leveling sensor malfunction
- Adaptive front lighting system (AFS) control module malfunction
|
|
|
