Plug Hole Plate Removal/Installation: Notes

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • If the rubber on only one side of the plug hole plate front is lifted up, it could damage the adapter at the location shown in the figure. When removing the plug hole plate, lift up the rubbers at the same time.

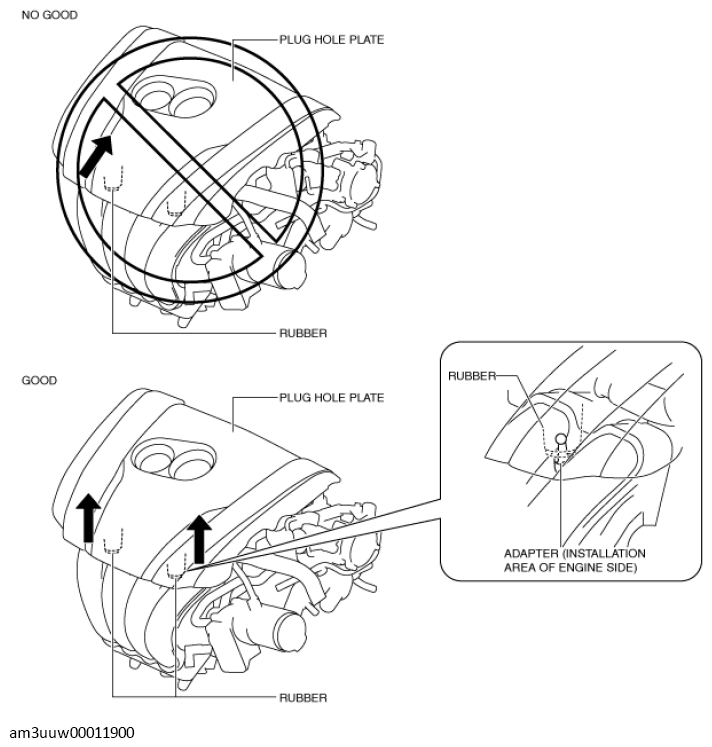

Fig 1: Caution For Rubber Side Of Plug Hole Plate Front Adapter Damage Location
G11437288Courtesy of MAZDA MOTORS CORP.
