Engine Front Cover Removal Note

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Remove the nut shown in the figure and set the cooler hose (LO) aside.

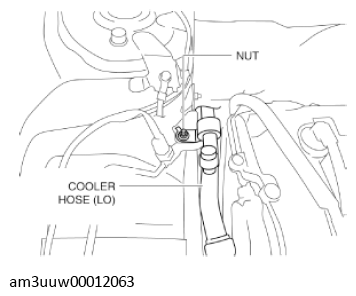

Fig 1: Cooler Hose (LO) Aside Nut Location
Courtesy of MAZDA MOTORS CORP.
Remove the insulator shown in the figure.

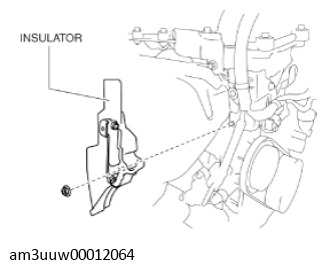

Fig 2: Removing Insulator
Courtesy of MAZDA MOTORS CORP.
Set the ground cable and wiring harness bracket shown in the figure aside.

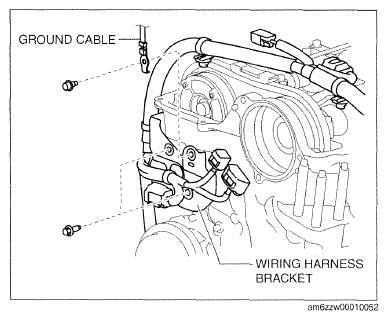

Fig 3: Setting Ground Cable And Wiring Harness Bracket
Courtesy of MAZDA MOTORS CORP.
Remove the engine front cover installation bolts.
Using a screwdriver wrapped in a cloth, peel the sealant away a little at a time, and remove the engine front cover.

CAUTION:

Do not apply excessive force to the screwdriver. Otherwise, the engine front cover could be damaged.
Be careful not to scratch or damage the seal surface. Otherwise, it could cause oil leakage.

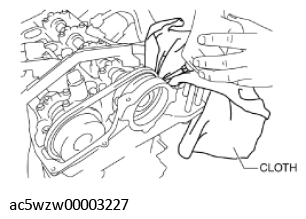

Fig 4: Removing Engine Front Cover (1 Of 2)

Courtesy of MAZDA MOTORS CORP.

Fig 5: Removing Engine Front Cover (2 Of 2)
