Evaporator Temperature Sensor Assembly Note

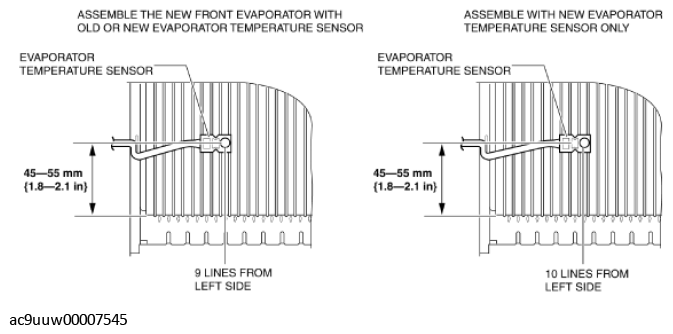

- Assemble the evaporator temperature sensor as shown in the figure.
CAUTION:
- When installing the evaporator temperature sensor without replacing the front evaporator, assemble the evaporator temperature sensor with the installation position slid to the right of the previous position by 1 line. If the evaporator temperature sensor is assembled to the previously installed position, it may not function due to poor contact of the fin surface with the sensor detection area caused by fin deformation.
