Front Air Mix Link Assembly Note

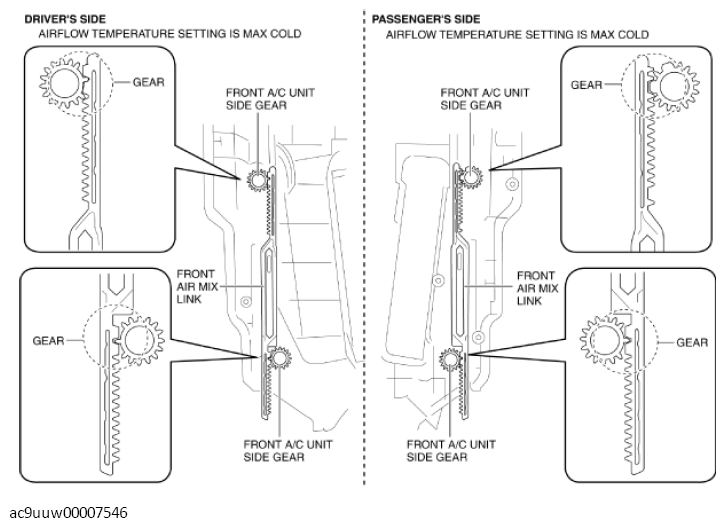

  1. Align the positions of the front A/C unit side gears with the positions of the front air mix link gears as shown in the figure.
G11433493Courtesy of MAZDA MOTORS CORP.
