Receiver/Drier Removal/Installation: Notes

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Discharge the refrigerant. (See REFRIGERANT RECOVERY .) (See REFRIGERANT CHARGING .)
  3. Remove the front under cover No. 2. (See FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION .)
  4. Remove the front under cover No. 1. (See FRONT UNDER COVER No. 1 REMOVAL/INSTALLATION .)
  5. Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT [SKYACTIV-G 2.5T] .)
  6. Remove the following parts:
    1. Plug hole plate (See PLUG HOLE PLATE REMOVAL/INSTALLATION [SKYACTIV-G 2.5T] .)
    2. Air cleaner, air hose and fresh air duct component (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.5T] .)
    3. Coolant reserve tank (See COOLANT RESERVE TANK REMOVAL/INSTALLATION [SKYACTIV-G 2.5T] .)
    4. Cooling fan component (See COOLING FAN MOTOR REMOVAL/INSTALLATION [SKYACTIV-G 2.5T] .)
    5. Charge air cooler inlet hose (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.5T] .)
    6. Charge air cooler outlet hose (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.5T] .)
    7. Radiator (See RADIATOR REMOVAL/INSTALLATION [SKYACTIV-G 2.5T] .)
    8. Condenser (See CONDENSER REMOVAL/INSTALLATION .)
  7. Remove the bolt by grasping receiver/drier with hand holding firmly.

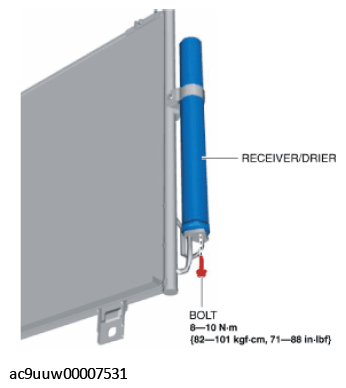

    Fig 1: Receiver/Drier And Bolt With Torque Specification
    G11433579Courtesy of MAZDA MOTORS CORP.

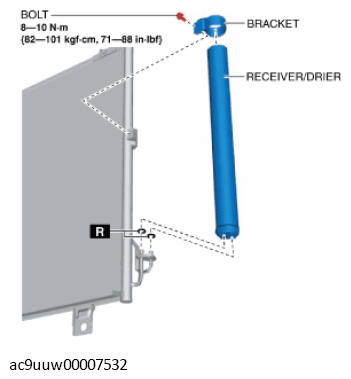

    Fig 2: Receiver/Drier, Bracket And Bolt With Torque Specification
    G11433580Courtesy of MAZDA MOTORS CORP.
  8. Remove the bracket.
  9. Remove the receiver/drier. Do not allow compressor oil to spill.
    CAUTION:
    • If moisture or foreign material enters the refrigeration cycle, cooling ability will be lowered and abnormal noise will occur. Always immediately plug all open fittings after removing any refrigeration cycle parts to keep moisture or foreign material out of the cycle.
  10. Install in the reverse order of removal. (See Receiver/drier Installation Note (1) .) (See Receiver/drier Installation Note (2) .)
  11. Inspect for engine coolant leakage. (See ENGINE COOLANT LEAKAGE INSPECTION [SKYACTIV-G 2.5T] .)
  12. Perform the refrigerant system performance test. (See REFRIGERANT SYSTEM PERFORMANCE TEST .)
