Rear Climate Control Unit Removal/Installation

WARNING: This page is about a different car, the 2017 Mazda CX-9. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the rear console panel. (See REAR CONSOLE REMOVAL/INSTALLATION .)
Remove the screws.

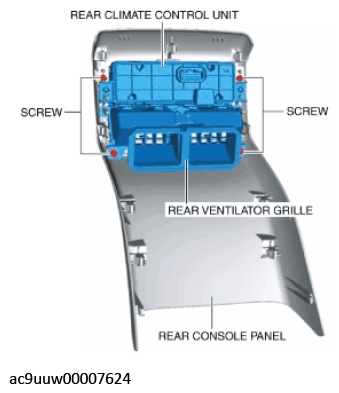

Fig 1: Rear Climate Control Unit Screws Location
Courtesy of MAZDA MOTORS CORP.
Remove the rear climate control unit and rear ventilator grille from the rear console panel.
Insert a tape-wrapped flathead screwdriver into the positions shown in the figure and move it in the direction of the arrows (1), and detach the tabs.

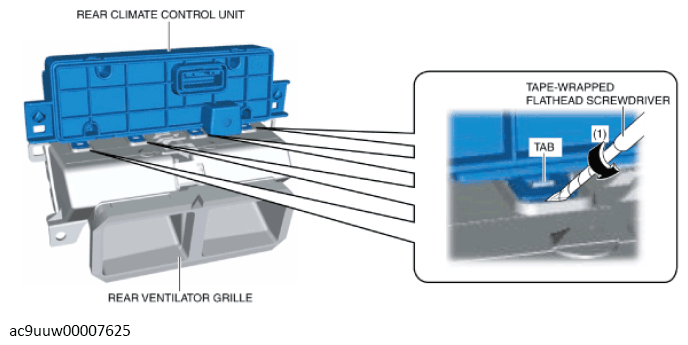

Fig 2: Inserting Tape-Wrapped Flathead Screwdriver Into Rear Climate Control Unit
Courtesy of MAZDA MOTORS CORP.
Remove the rear climate control unit from the rear ventilator grille.

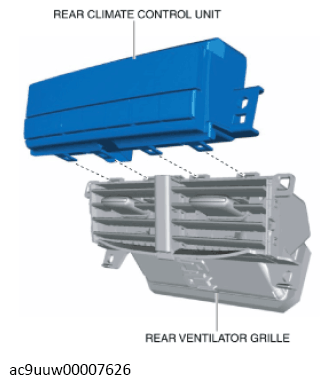

Fig 3: Removing Rear Climate Control Unit From Rear Ventilator Grille
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
