Air Cleaner Case Installation Note

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the air cleaner case as shown in the figure.

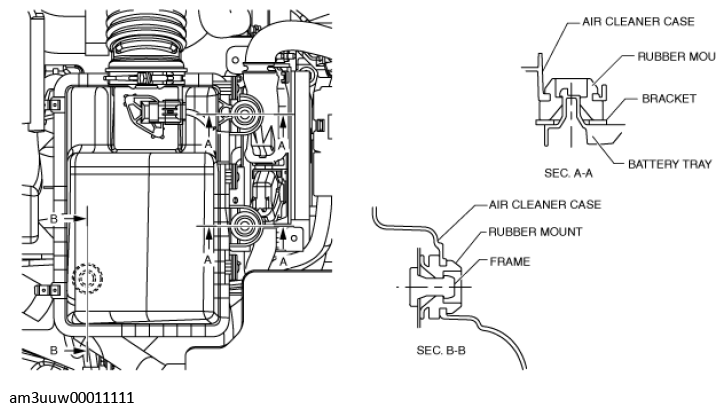

Fig 1: Installing Air Cleaner Case
G11549866Courtesy of MAZDA MOTORS CORP.
