Refrigerant Line Removal/Installation: Notes

NOTE:

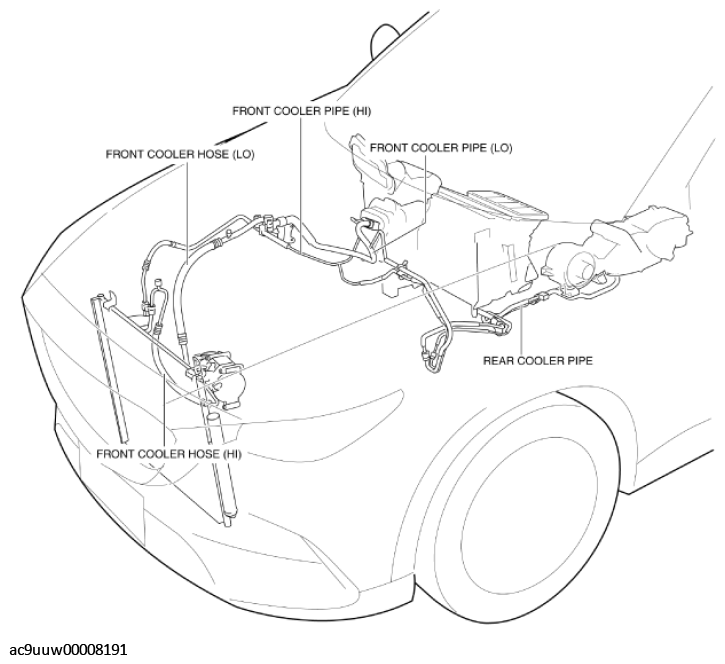

  • The refrigerant line consists of the following parts.
G11433581Courtesy of MAZDA MOTORS CORP.
